Flat-Plate
Flat-Plate Gate Valve
Detailed information

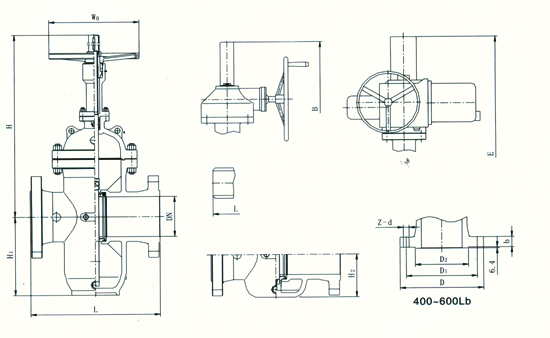

Main size of outside
Model:400Lb 、600L

NP(Class) NPS(in) Overall dimensions(mm) Geared Electric
L D D1 D2 b z-d Wo H1 H2 H B E
400Lb 2 292 165 127 92 25.5 8-19 250 148 98 452 485 635 BA-0 SMC-04
21/2 330 190 149 105 29 8-22 300 172 110 525 560 695 BA-0 SMC-04
3 356 210 168 127 32 8-22 300 197 118 582 600 745 BA-0 SMC-04
4 406 254 200 157 35 8-26 350 240 140 685 770 930 BA-0 SMC-03
5 457 279 235 186 38.5 8-26 400 270 158 790 885 1060 BA-0 SMC-03
6 495 318 270 216 41.5 12-26 400 302 170 886 972 1116 BA-0 SMC-00
8 597 381 330 270 48 12-29 500 395 205 1086 1200 1410 BA-0 SMC-00
10 673 445 387.5 324 54 16-32 500 486 235 1315 1370 1550 BA-1 SMC-0
12 762 520 451 381 57.5 16-35 600 568 265 1520 1560 1745 BA-1 SMC-0
14 826 585 514.5 413 60.5 20-35   646 305   1740 1930 BA-1 SMC-1
16 902 650 571.5 470 63.5 20-39   736 340   1930 2115 BA-2 SMC-1
18 978 710 628 533 67 24-39   790 355   2145 2370 BA-2 SMC-1
20 1054 775 686 584 70 24-42   905 410   2410 2620 BA-2 SMC-2
24 1232 915 813 692 76.5 24-48   1070 480   2795 3025 BA-3 SMC-2
600LB 2 292 165 127 92 26 8-19 250 148 98 452 485 635 BA-0 SMC-04
21/2 330 190 149 105 29 8-22 300 172 110 525 560 695 BA-0 SMC-04
3 356 210 168 127 32 8-22 300 197 118 582 600 745 BA-0 SMC-04
4 432 273 216 157 38 8-25 350 240 140 685 770 930 BA-0 SMC-03
5 508 330 266.5 186 45 8-29 400 270 158 790 885 1060 BA-0 SMC-03
6 559 356 292 216 48 12-29 400 320 180 900 975 1130 BA-0 SMC-00
8 660 419 349 270 56 12-32 500 410 225 1132 1200 1410 BA-1 SMC-0
10 787 508 432 324 64 16-35 500 487 265 1332 1375 1575 BA-1 SMC-0
12 838 559 489 381 67 20-35 600 575 295 1540 1560 1750 BA-1 SMC-1
14 889 603 527 413 70 20-38   660 335   1740 1930 BA-2 SMC-1
16 991 686 603 470 77 20-41   740 375   1975 2215 BA-2 SMC-1
18 1092 743 654 533 83 20-44   810 375   2225 2430 BA-2 SMC-2
20 1194 813 724 584 89 24-44   905 410   2410 2625 BA-2 SMC-2
