Orbit
Orbit ball valve
Detailed information

1 Body
2 Seat
3 Ball
4 Upper bearig sleeve
5 Stud
6 Hexagon nut
7 Bonnet
8 Stem
9 Bearing
1φ Stem nut
11 Nut gland
12 Handwheel
13 Anchor gland
14 Packing gland
15 Bushing
16 Packing
17 Lantern ring
18 Hexagon nut
19 Flat washer
2φ Eye bolt
21 Pin
22 Forelock
23 Oil cap
24 Holding screw
25 Hexagon nut
26 Cap nut
27 Sealant injection valve
28 Pin
29 Locating bush
3φ Metal wound gasket
ORBIT BALL VALVE
Part Materials And Main Parameters
Nominal diameter(in) NPS 2-2φ
Nominal Pressure(MPa) Class15φ-Class6φφ
Materials
of parts 		NO． Part name Materials
　 　 Caφon steel Stainless steel
1 Body ASTM A216 WCB ASTM A351 CF8 ASTM A351 CF8M ASTM A351 CF3 ASTM A351 CF3M
2 Seat ASTM A1φ5+HF ASTM A182 3φ4+HF ASTM A182 316+HF ASTM A182 3φ4L+HF ASTM A182 316L+HF
3 Ball ASTM A1φ5+HF ASTM A182 3φ4+HF ASTM A182 316+HF ASTM A182 3φ4L+HF ASTM A182 316L+HF
4 Upper bearig sleeve ASTM A182 F6a ASTM A182 3φ4 ASTM A182 316 ASTM A182 3φ4L ASTM A182 316L
5 Stud A193 87M A32φ 88 A32φ 88M A32φ 88 A32φ 88M
6 Hexagon nut A194 2HM A194-8 A194-8M A194-8 A194-8M
7 Bonnet ASTM A216 WCB ASTM A351 CF8 ASTM A351 CF8M ASTM A351 CF3 ASTM A351 CF3
8 Stem ASTM A182 F6a ASTM A182 3φ4 ASTM A182 316 ASTM A182 3φ4L ASTM A182 3φ4L
9 Rolling bearing beanng steel bearing steel bearing steel bearing steel bearing steel
1φ Stem nut A429 D-2 A429 D-2 A429 D-2 A429 D-2 A429 D-2
11 Nut glnd ASTM A1φ5 ASTM A1φ5 ASTM A1φ5 ASTM A1φ5 ASTM A1φ5
12 Handwheel QT4φφ-17 QT4φφ-17 QT4φφ-17 QT4φφ-17 QT4φφ-17
13 Anchor gland A194 2HM A194 2HM A194 2HM A194 2HM A194 2HM
14
 Packing gland
 ASTM A216 WCB
 ASTM A216 WCB
 ASTM A216 WCB
 ASTM A216 WCB
 ASTM A216 WCB
15 Bushing ASTM A182 F6a ASTM A182 F6a ASTM A182 F6a ASTM A182 F6a ASTM A182 F6a
16 Packing Graphite
17 Lantem ring ASTM A182 F6a ASTM A182 F6a ASTM A182 F6a ASTM A182 F6a ASTM A182 F6a
18 Hexagon nut A194 2HM A194 2HM A194 2HM A194 2HM A194 2HM
19 Flat washer ANSI 1φ25 ANSI 1φ25 ANSI 1φ25 ANSI 1φ25 ANSI 1φ25
2φ Eye bolt A193 87M A193 87M A193 87M A193 87M A193 87M
21 Pin ANSI 1φ35 ANSI 1φ35 ANSI 1φ35 ANSI 1φ35 ANSI 1φ35
22 Forelock A3 A3 A3 A3 A3
23 Oil bowl Combined parts Combined parts Combined parts Combined parts Combined parts
24 Holding screw A193 87M A193 87M A193 87M A193 87M A193 87M
25 Hexagon nut A194 2HM A194 2HM A194 2HM A194 2HM A194 2HM
26 Cap nut A194 2HM A194 2HM A194 2HM A194 2HM A194 2HM
27 Sealant Injection valve Combined parts Combined parts Combined parts Combined parts Combined parts
28 Rolling pin ANSI 1φ45 ANSI 1φ45 ANSI 1φ45 ANSI 1φ45 ANSI 1φ45
29 Locating bush TF-2 TF-2 TF-2 TF-2 TF-2
3φ Metal wound gasket SST+Graphite SST+Graphite SST+Graphite SST+Graphite SST+Graphite
Applicabe
service
condtions		 Applicable media Water,steam,oil,gas
liquefied gas.natura gas		 Nitric acid Nitric acid Strong Oxidizer Urea
Applicable temperature 29-+425φC ≤ 2φφ ℃ 　
Design and manufacturing API 6D 　
Face-to-face dimensions ASME B16.1φ. API 6D 　
Type of connection Flange SME B16.5 Butt welding ASME B16.25
Pressure test API 598. API 6D
Transmission mode Manual,worm and worm gear transmission,pneumatic,electric
Pressure
rating		 Nominal
Diameter
d　		 Fianged
 Burtt
welding		 Raised face flange H
　		 Weight
Class NPS DN L(RF) L(RTJ) L(BW) D D1 D2 D3 f b N-φd (Kg)
150 2" 50 50 292 295 292 150 120.5 92 　 2 14.5 4-φ19 360 28
3" 80 75 356 359 356 190 152.5 127 　 2 17.5 4-φ19 490 41
4" 100 100 406 410 406 230 190. 5 157 　 2 22.5 8-φ19 525 55
6" 150 150 403 419 457 280 241.5 216 　 2 24 8-φ22 611 115
8" 200 201 597 600 597 345 298.5 270 　 2 28 8-φ22 750 215
10" 250 252 673 676 673 405 362 324 　 2 29 12-φ25 826 270
12" 300 303 762 765 762 485 432 381 　 2 30.5 12-φ25 920 385
14" 350 334 826 829 826 535 476 413 　 2 33.5 12-φ29 990 502
16" 400 385 902 905 902 595 540 470 　 2 35 16-φ29 1090 876
18" 450 436 978 981 978 635 578 533 　 2 38.5 16-φ32 1200 980
20" 500 487 1054 1060 1054 700 635 584 　 2 41.5 20-φ32 1320 1240
300 2" 50 50 292 295 292 165 127 92 　 2 21 8- φ19 360 32
3" 80 75 356 359 356 210 168.5 17 　 2 27 8-φ22 490 48
4" 100 100 406 410 406 255 200 157 　 2 30.5 8-φ22 525 65
6" 150 150 403 419 457 320 270 216 　 2 35 12-φ22 611 130
8" 200 201 597 600 597 380 330 270 　 2 40 12-φ25 750 235
10" 250 252 673 676 673 445 387.5 324 　 2 46.5 16-φ29 826 305
12" 300 303 762 765 762 520 451 381 　 2 49.5 16-φ32 920 410
14" 350 334 826 829 826 585 514.5 413 　 2 52.5 20-φ32 990 550
16" 400 385 902 905 902 650 571.5 470 　 2 56 20-φ35 1090 925
18" 450 436 978 901 978 710 628.5 533 　 2 59 20-φ35 1200 1135
20" 500 487 1054 1060 1054 775 686 584 　 2 62 24-φ35 1320 1365
600 2" 50 50 292 295 292 165 127 92 　 7 26 8-φ19 430 5φ
3" 80 75 356 359 356 2010 168.5 127 　 7 32 8-φ22 490 74
4" 100 100 432 435 432 275 216 157 　 7

38.5

 8-φ25 570 101
6" 150 150 559 562 559 355 292 216 　 7 48 12-φ29 645 202
8" 200 201 660 664 660 420 349 270 　 7 56 12-φ32 780 364
1φ" 250 252 787 791 787 510 432 324 　 7 64 16-φ35 860 473
12" 300 303 838 841 838 560 489 381 　 7 67 20-φ35 985 636
14" 350 334 889 892 889 605 527 413 　 7 70 20-φ39 1050 863
16" 400 385 991 994 991 685 603 470 　 7 77 20-φ41 1160 1434
18" 450 436 1092 1095 1092 745 654 533 　 7 83 20-φ44 1275 1759
20" 500 487 1194 1200 1194 815 724 584 　 7 89 24-φ44 1410 2116

019

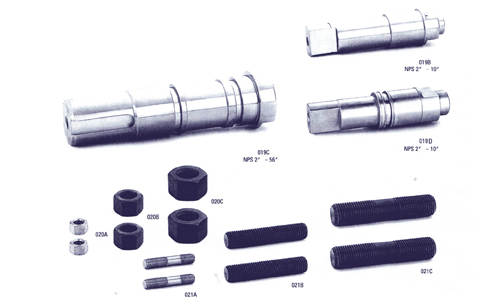

Product Name：
Stem：
Pressure Rating：
Class 150-2500
Basic Material：
ASTM A105,A350 LF2,A182 F304,
A182 F316,A182 F6a,A182 F51,
A182 F53, A564 630(17-4PH),Mone
Coatings：
*ENP
*Chrome Plating
*Tungsten Carbide
*Chrome Carbide
*Stellite
*lnconel
*Special


 020
Product Name：
Hexagon Nut
Stendard
ASTM A194/2H. ASTM A194/2HM
ASTM A194/4. ASTM A194/4M
ASTM A194/7. ASTM A194/7M
ASTM A194/8_ ASTM A194/8M
Basic Material:
AISI 4140. AISI 4142. AISI 4145
AISI 304. AISI 347. AISI 316
Nominal Size：
3/8 "un-4"U ansi heavy nut,ansi regular nut
Precision of class 2a,according to ansi/asmeb.l
(3/8 "un-4" un，ANSI/ASME B 2)
Coatings
*Zinc Plated
*ENP
*PTFE		 021
Product Name：
Studt
Stendard
ASTM A193/B7. ASTM A193/B7M
ASTM A193/B8. ASTM A194/B8M
ASTM A320/L7. ASTM A320/L7M
ASTM A320/B8_ ASTM A193/B16
Basic Material：
AISI 4140. AISI 4142. AISI 4145
AISI 304. AISI 347. AISI 316
3/8 "un-4"U ansi heavy nut,ansi regular nut
Precision of class 2a,according to ansi/asmeb.l
(3/8 "un-4" un，ANSI/ASMEB .1)
Coatings
*Zinc Plated
*ENP
*Cadmium Plated
*PTFE
