Hard

Hard sealing floating ball valve

Detailed information

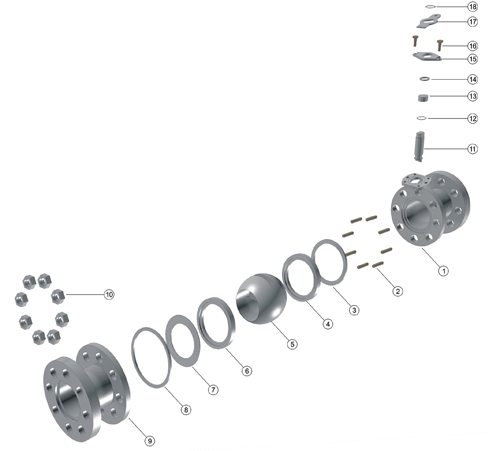

1	Body
2	Stud
3	Graphite Washer
4	Back Seat
5	Ball
6	Front Seat
7	Flat Spring
8	Anti-fire Gasket
9	Bonnet
10	Hexagon Nut
11	Stem
12	Sliding Washer
13	Stem Bearing
14	Packing
15	Packing Gland
16	Hexagon Screw
17	Stopper
18	Elastic Back Ring

Main Materials

Part Name	A	B	C	D	E	F
Body	WCB	WCB	WCB	CF8	CF8M	LCC/LCB
Bal	A105+STL	F304+STL	F316+STL	F304+STL	F316+STL	LF2+STL
Seat	A105+STL	F304+STL	F316+STL	F304+STL	F316+STL	LF2+STL
Stem	F6a	F304	F316	F304	F316	F6a
Stud	B7	B7M	B7M	B8	B8M	L7M
Nut	2H 2HM 2HM 8 8 7M
Graphite Washer	GRAPHITE
Packing	GRAPHITE
Anti-fire Gasket	304+GRAPHITE
Flat spring	Inconel -750、17-7PH. 304、316 50CrVA 65Mn
