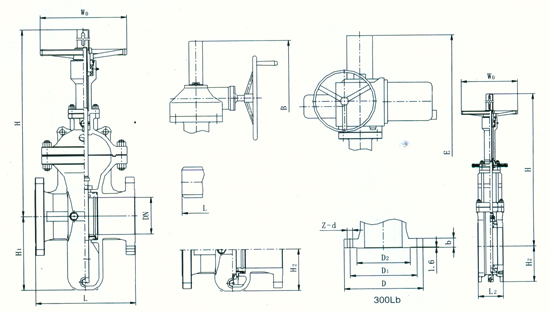

Main size of outside
Model:300Lb
| NPS(in) |
Overall dimensions(mm) |
Geared |
Electric |
| L |
L1 |
D |
D1 |
D2 |
b |
z-d |
Wo |
H1 |
H2 |
H |
B |
E |
| 2 |
216 |
|
165 |
127 |
92 |
23 |
4-19 |
200 |
130 |
85 |
440 |
|
|
|
|
| 21/2 |
241 |
|
190 |
149 |
105 |
26 |
4-19 |
250 |
155 |
95 |
485 |
|
|
|
|
| 3 |
283 |
|
210 |
168.5 |
127 |
29 |
4-19 |
300 |
182 |
106 |
572 |
|
|
|
|
| 4 |
305 |
150 |
254 |
200 |
157 |
32 |
8-19 |
300 |
220 |
128 |
665 |
765 |
910 |
BA-0 |
SMC-04 |
| 5 |
381 |
150 |
279 |
235 |
186 |
35 |
8-22 |
350 |
262 |
142 |
782 |
870 |
1030 |
BA-0 |
SMC-04 |
| 6 |
403 |
150 |
318 |
270 |
216 |
37 |
8-22 |
350 |
302 |
160 |
886 |
960 |
1105 |
BA-0 |
SMC-03 |
| 8 |
419 |
180 |
381 |
330 |
270 |
42 |
8-22 |
400 |
395 |
192 |
1086 |
1190 |
1390 |
BA-0 |
SMC-00 |
| 10 |
457 |
180 |
445 |
387.5 |
324 |
48 |
12-25 |
450 |
485 |
228 |
1298 |
1360 |
1545 |
BA-0 |
SMC-00 |
| 12 |
502 |
200 |
521 |
451 |
381 |
51 |
12-25 |
500 |
562 |
265 |
1500 |
1560 |
1740 |
BA-1 |
SMC-0 |
| 14 |
762 |
200 |
584 |
514.5 |
413 |
54 |
12-29 |
|
635 |
305 |
|
1740 |
1930 |
BA-1 |
SMC-0 |
| 16 |
838 |
218 |
648 |
571.5 |
470 |
58 |
16-29 |
|
720 |
330 |
|
1925 |
2115 |
BA-1 |
SMC-0 |
| 18 |
914 |
218 |
711 |
628.5 |
533 |
61 |
16-32 |
|
790 |
355 |
|
2145 |
2370 |
BA-1 |
SMC-1 |
| 20 |
991 |
229 |
775 |
686 |
584 |
64 |
20-32 |
|
870 |
410 |
|
2400 |
2610 |
BA-2 |
SMC-1 |
| 24 |
1143 |
248 |
914 |
813 |
692 |
70 |
20-35 |
|
1050 |
460 |
|
2785 |
3010 |
BA-2 |
SMC-1 |
