Jacket ball valve_Ball valve_China Jingjia Valve (Group) Co., Ltd.

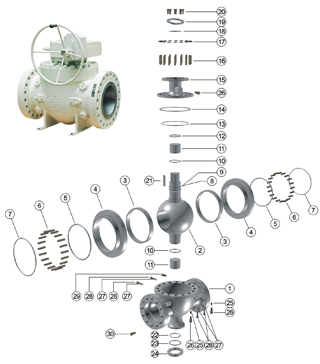

1	Body
2	Ball
3	Seat
4	Seat Retainer
5	"O"Ring
6	Spring
7	Anti-fire Washer
8	Anti-static Ball
9	Anti-static Spring
10	"O"Ring
11	Stem Bearing
12	Sliding Washer
13	"O"Ring
14	Anti-fire Gasket
15	Bonnet
16	Stud
17	Hexagon Nut
18	Packing
19	Packing Gland
20	Hexagon Screw
21	Key
22	Sliding Gasket
23	Anti-fire Gasket
24	Lower Cover
25	Check Valve
26	Sealant Fitting
27	Gasket
28	Hexagon Screw
29	Release Valve
30	Drain Piug

Main Materials

Part Name	A	B	C	D	E	F
Body	WCB	WCB	WCB	CF8	CF8M	LCC/LCB
Seat Retainer	A105+ENP	F304	F316	F304	F316	LF2+ENP
Ball	A105+ENP	F304	F316	F304	F316	LF2+ENP
Srem	F6a	F304	F316	F304	F316	F6a
Stud	B7	F7M	F7M	B8	B8M	L7M
Nut	2H	2HM	2HM	8	8M	7M
Spring	17-7PH/INCONEL
Seat	PTFE/PPL/NYLON/DEVLON
O Ring	VITON
Packing	GRAHITE/PTFE
Anti-fire Gasket	304+GRAPHITE

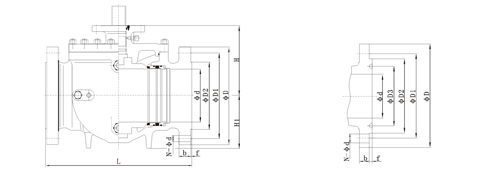

Pressure rating	Nominal Diameter		D	Flanged		Buttw elding	Flanged							H	H1	Weight(kg)
class	NPS	DN	D	L(RH)	L(RTJ)	L(BW)	D	D1	D2	D3	F	B	N-фd	H	H1	Weight(kg)
150	2"	50	50	292	295	292	150	120.5	92		2	14.5	4-ф19	130	102	△
	3"	80	75	283	298	283	190	152.5	127		2	17.5	4-ф19	163	150	△
	4"	100	100	432	435	432	230	190.5	157		2	22.5	8-ф19	177	175	△
	6"	150	150	559	562	559	280	241.5	216		2	24	8-ф22	240	231	△
	8"	200	201	660	664	660	345	298.5	270		2	27	8-ф22	266	256	△
	10"	250	252	787	791	787	405	362	324		2	29	12-ф25	324	303.5	△
	12"	300	303	838	841	838	485	432	381		2	30.5	12-ф25	383	310	△
	14"	350	334	889	892	889	535	476	413		2	33.5	12-ф29	390	300	△
	16"	400	385	991	994	991	595	540	470		2	35	16-ф29	435	340	△
	18"	450	436	1092	1095	1092	635	578	533		2	38.5	16-ф32	522	410	△
	20"	500	487	1194	1200	1194	700	635	584		2	41.5	20-ф32	565	445	△
	24"	600	589	1397	1407	1397	815	749.5	692		2	46.5	20-ф35	618	480	△
	26"	650	633	1448		1448	870	806.5	749		2	68	24-ф35	660	540	△
	28”	700	684	1549		1549	927	864	800		2	71	28-ф35	690	596	△
	30"	750	735	1651		1651	984	914.5	857		2	75	28-ф35	770	620	△
	32"	800	779	1778		1778	1060	978	914		2	91	28-ф41	838	680	△
	36"	900	874	2083		2083	1168	1086	1022		2	90	32-ф41	910	710	△
300	2"	50	50	292	295	292	165	127	92		2	21	8-ф19	130	102	△
	3"	80	75	283	298	283	210	168.5	127		2	27	8-ф22	163	150	△
	4"	100	100	432	435	432	255	200	157		2	30.5	8-ф22	177	175	△
	6"	150	150	559	562	559	320	270	216		2	35	12-ф22	240	231	△
	8"	200	201	660	664	660	380	330	270		2	40	12-ф25	266	276	△
	10"	250	252	787	791	787	445	387.5	324		2	46.5	16-ф29	324	303.5	△
	12"	300	303	838	841	838	520	451	381		2	49.5	16-ф32	383	362	△
	14"	350	334	889	892	889	585	514.5	413		2	52.5	20-ф32	390	300	△
	16"	400	385	991	994	991	650	571.5	470		2	56	20-ф35	440	365	△
	18"	450	436	1092	1095	1092	710	628.5	533		2	59	24-ф35	535	420	△
	20"	500	487	1194	1200	1194	775	686	584		2	62	24-ф35	575	450	△
	24"	600	589	1397	1407	1397	915	813	692		2	68.5	24-ф41	640	490	△
	26”	650	633	1448		1448	972	876.5	749		2	79	28-ф45	680	560	△
	28"	700	684	1549		1549	1035	940	800		2	86	28-ф45	720	610	△
	30"	750	735	1651		1651	1092	997	857		2	92	28-ф48	808	640	△
	32"	800	779	1778		1778	1149	1054	914		2	98	28-ф51	860	700	△
	36"	900	874	2083		2083	1270	1168	1022		2	105	32-ф54	935	730	△

A Please consult the factory:
Note:The weight value is only for flanged valve.Please consult our factory for higher nominal diameter or weight.Any modification to sizes H,H1 and weight will not be notifed otherwise.
