-Heating dedicated full welded ball valve 3
Heating dedicated full welded ball valve 3
Detailed information

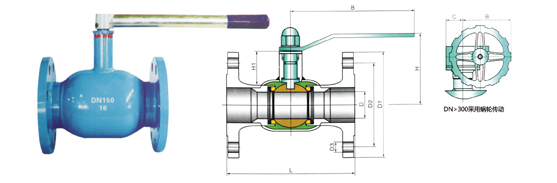

Main Size of Oustide&Weight PN25/PN40
Reduced Bore flange/flange Unit: mm
DN
PN
L
D
D1
D2
D3
H
B
C
H1
Weight(KG)
(N.M)
15
40
130
10
95
65
14
98
145
22
1.9
1-2
20
40
150
15
105
75
14
103
145
23
2.7
3-4
25
40
160
20
115
85
14
118
145
34
3.3
5-7
32
40
180
25
140
100
18
121
145
34
5.0
8-11
40
40
200
32
150
110
18
120
190
43
6.0
12-18
50
40
230
40
165
125
18
127
190
44
7.9
25-32
65
25
270
50
185
145
18
170
280
71
11.3
38-45
80
25
280
65
200
160
18
185
280
77
14.9
55-65
100
25
300
80
235
190
22
210
280
102
19.4
110-120
125
25
325
100
270
220
26
253
400
102
28.5
200-250
150
25
350
125
300
250
26
273
600
107
37.1
300-340
200
25
400
150
360
310
26
300
900
123
63.0
450-480
250
25
530
200
425
370
30
345
1200
122
108.6
750-800
300
25
630
250
485
430
30
572
280
193
155
272
900-950
350
25
690
300
555
490
33
697
325
150
187
462
1200-1300
400
25
762
350
620
550
36
764
466
175
221
662
1900-2000
