-Heating dedicated full welded ball valve 2

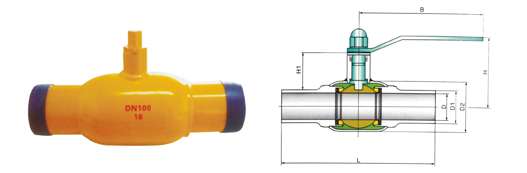

Heating dedicated full welded ball valve 2
Detailed information
Main Size of Outside&Weight PN25/PN40
Reduced Bore Welded/Welded Unit: mm
DN
PN
L
D
D1
D2
H
B
H1
Weight(KG)
(N.M)
15
40
210
10
21.7
427
103
129
22
3-4
20
40
230
15
27.2
48
118
159
23
5-7
25
40
260
20
34.0
60
121
159
34
8-11
32
40
260
25
42.7
76
120
230
34
12-18
40
40
300
32
48.6
89
127
230
43
25-32
50
40
300
40
60.5
114
170
300
44
38-45
65
25
300
50
76.3
140
185
300
71
55-65
80
25
300
65
89.1
165
210
400
77
110-120
100
25
325
80
114.3
216
253
400
102
200-250
125
25
350
100
139.8
219
273
450
102
300-340
150
25
490
125
165.2
355
300
450
107
450-480
200
25
580
150
216.3
356
345
252
123
750-800
250
25
550
200
267.4
457
572
236
122
900-950
300
25
630
250
318.5
508
697
331
155
1200-130
350
25
762
337
355.6
559
764
331
187
1 900-200
400
25
840
387
406.4
660
810
360
221
500
25
1010
489
508.0
812
973
413
221
