| 1、Use |
| Suitable for the pipeline to transfer cogeneration,cogeneration,heating,oil,deoxygenized water and etc. |
| 2、Structure Features |
| The valve is composed by a full welding body together with the RPTFE sealing which ensures the valve can work well in case of there are imoutries or chemical substance.Floating ball structure and the flexible seat will ensure the ball and the sealing connects each other tightly.Evon when the pressure is not stable,the valve can also have a good sealing. The stem can be extended which is good for keeping the tempeture stable. |
| 3、Technical Specifications |
Main Parts and Materials |
| Design and Manufacture |
AP16D. ASME B16.34. API 608. MSS-SP-72 |
| Face-to-Face |
Manufacture’s specification |
| *Connection End |
Flanged
|
ASME B16.5 |
| |
Butt-Welding |
ASME B16.25 |
| Test and Inspection |
AP1598. API 6D |
| Fire Test |
API 607. API 6FA |
the dimension of welded end connection can be designed
and manufactured according to the buyers’s request. |
|
|
| Part Name |
Materials |
| Handle |
Galvanized steel |
| Retaining ring |
Stainless steel |
| O-ring |
Viton |
| Stem |
Stainless steel |
| Seal |
RPTFE |
| Ball |
Stainless steel |
| Ball seat |
Stainless steel |
| Back-up ring |
Stainless steel |
| Spring washer |
Stainless steel |
| Valve casing |
St37.0 |
|
|
 |

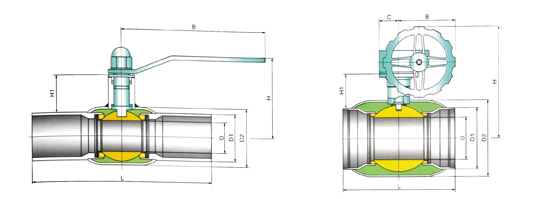

| Main Size of Oustide＆Weight PN25/PN40 |
| Reduced Bore Welded/Welded Unit: mm |
| DN |
PN |
L |
D |
D1 |
D2 |
H |
B |
c |
H1 |
Weight(KG) |
扭矩(N．M) |
| 10 |
40 |
230 |
10 |
172 |
33 7 |
98 |
145 |
|
22 |
0.5 |
1-2 |
| 15 |
40 |
230 |
10 |
21.3 |
33.7 |
98 |
145 |
|
22 |
0.5 |
1-2 |
| 20 |
40 |
230 |
15 |
26.9 |
42.4 |
103 |
145 |
|
23 |
0.7 |
3-4 |
| 25 |
40 |
230 |
20 |
337 |
48.3 |
118 |
145 |
|
34 |
1.0 |
5-7 |
| 32 |
40 |
260 |
25 |
42.4 |
60 3 |
121 |
145 |
|
34 |
1.4 |
8-11 |
| 40 |
40 |
260 |
32 |
48 3 |
76 1 |
120 |
190 |
|
43 |
1.8 |
12-18 |
| 50 |
40 |
300 |
40 |
60 3 |
88 9 |
127 |
190 |
|
44 |
2.6 |
25-32 |
| 65 |
25 |
300 |
50 |
76.1 |
114.3 |
170 |
280 |
|
71 |
4.4 |
38-45 |
| 80 |
25 |
300 |
65 |
88.9 |
139.7 |
185 |
280 |
|
77 |
5.6 |
55-65 |
| 100 |
25 |
325 |
80 |
114.3 |
168.3 |
210 |
280 |
|
102 |
8.4 |
110-120 |
| 125 |
25 |
325 |
100 |
139.7 |
177.8 |
253 |
400 |
|
102 |
134 |
200-250 |
| 150 |
25 |
350 |
125 |
168.3 |
219.1 |
273 |
600 |
|
107 |
18.0 |
300-340 |
| 200 |
25 |
400 |
150 |
219.1 |
273 |
300 |
900 |
|
123 |
36.3 |
450-480 |
| 250 |
25 |
530 |
200 |
273 |
355.6 |
345 |
1200 |
|
122 |
72.0 |
750-800 |
| 300 |
25 |
550 |
250 |
323.9 |
457 |
572 |
280 |
193 |
155 |
193 |
900-950 |
| 350 |
25 |
650 |
300 |
355.6 |
508 |
697 |
325 |
150 |
187 |
385 |
1200-1300 |
| 400 |
25 |
760 |
350 |
406.4 |
610 |
764 |
466 |
175 |
221 |
567 |
1 900-2000 |
| 500 |
25 |
914 |
400 |
508 |
680 |
810 |
466 |
175 |
221 |
746 |
|
| 600 |
25 |
1067 |
500 |
610 |
830 |
973 |
466 |
175 |
259 |
1568 |
|
|
|
| |
