Hydraulic control slow closed eccentric semi ball valve series

Detailed information

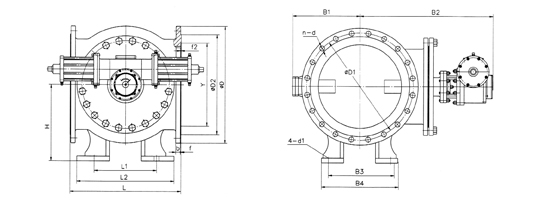

Ourtline Sketch and main dimensions of storage tank hydraulic control slow closing eccentric semi-ball valve

HBQ7bp40F (H)(PN=1.OMpa) unit(mm)
Outline Sketch and main dimensions of HBQ7bp40F(H) storage tank hydra ulic control slow cloisng eccentric semo-ball valve

DN	L	D	D1	D2	b	f	n	d	L1	L2	H	B1	B2	B3	B4	dl
200	292	340	295	265	24	4	8	23				240	808
250	330	395	350	320	26	4	12	23				326	830
300	390	445	400	370	26	4	12	23				280	838
350	430	505	460	429	28	4	16	23				305	860
400	530	565	515	480	32	4	16	28				365	930
500	630	670	620	582	34	4	20	28				440	1050
600	800	780	725	682	35	5	20	31	450	700	600	525	1105	450	550	32
700	900	895	840	794	35	5	24	31	500	750	670	555	1300	570	700	32
800	1000	1015	950	901	40	5	24	34	550	800	730	605	1350	650	780	35
900	1100	1115	1050	1001	40	5	28	34	600	850	780	670	1410	700	860	35
1000	1200	1230	1160	1112	42	5	28	37	650	900	830	755	1530	740	900	42
1100	1250	1340	1270	1222	42	5	28	37	700	950	890	755	1580	760	920	42
1200	1300	1455	1380	1328	45	5	32	40	750	1000	920	855	1700	790	950	42
1250	1400	1505	1430	1378	45	5	32	40	800	1050	970	855	1740	1140	1280	42
1300	1500	1575	1490	1425	45	5	32	43	850	1100	1000	1010	1765	840	1000	42
1400	1600	1675	1590	1530	46	5	36	43	900	1150	1080	1060	1930	880	1050	42
1500	1700	1785	1 7100	1640	46	5	36	49	950	1200	1130	1200	1970	900	1100	42
1600	1800	1915	1820	1750	50	5	40	49	1000	1250	1250	1250	2045	11∞	1300	48
1750	2000	2065	1970	1900	50	5	44	49	1100	1300	1320	1325	2130	1300	1500	48
1800	2000	2115	2020	1950	52	5	44	49	1100	1350	1300	1370	2200	1300	1500	48
2000	2200	2325	2230	2150	54	5	48	49	1200	1450	1400	1470	2345	1500	1700	48

HBQ7bp40F(H)(PN=1.6Mpa) unit(mm)
Outline Sketch and main dimensions of HBQ7bp40F(H) storage tank hydraulic control slow cloisng eccentric semo-ball valve

DN	L	D	D1	D2	b	f	n	d	L1	L2	H	B1	B2	B3	B4	dl
200	292	340	295	265	24	4	12	23				240	808
250	330	405	355	320	24	4	12	27				326	830
300	390	460	410	375	26	4	12	27				280	838
350	430	520	470	429	28	4	16	27				305	860
400	530	580	525	480	32	4	16	31				365	930
500	630	715	650	609	34	4	20	34				440	1050
600	800	840	770	720	35	5	20	37	450	700	600	525	1105	450	550	32
700	900	910	840	794	35	5	24	37	500	750	670	555	1300	570	700	32
800	1000	1025	950	901	40	5	24	40	550	800	730	605	1350	650	780	35
900	1100	1125	1050	1001	40	5	28	40	600	850	780	670	1410	700	860	35
1000	1200	1255	1170	1112	42	5	28	43	650	900	830	755	1530	740	900	42
1100	1250	1370	1280	1222	42	5	28	43	700	950	890	755	1580	760	920	42
1200	1300	1485	1390	1328	45	5	32	49	750	1000	920	855	1700	790	950	42
1250	1400	1535	1440	1378	46	5	32	49	800	1050	970	855	1740	1140	1280	42
1300	1500	1585	1490	1425	50	5	32	49	850	11∽	1000	1010	1765	840	1000	42
1400	1600	1685	1590	1530	54	5	36	49	900	1150	1080	1060	1930	880	1050	42
1500	1700	1820	1710	1640	54	5	36	49	950	1200	1130	1200	1970	900	1100	42
1600	1800	1930	1820	1750	56	5	40	56	1000	1250	1250	1250	2045	1100	1300	48
1750	2000	2080	1970	1900	60	5	44	56	1100	1300	1320	1325	2130	1300	1500	48
1800	2000	2308	2020	1950	60	5	44	56	1100	1350	1300	1370	2200	1300	1500	48
2000	2200	2345	2230	2150	65	5	48	62	1200	1450	1400	1470	2345	1500	1700	48
