You are here ：Home - Product show - -Forged steel two chip fixed ball valve

Forged

Forged steel two chip fixed ball valve

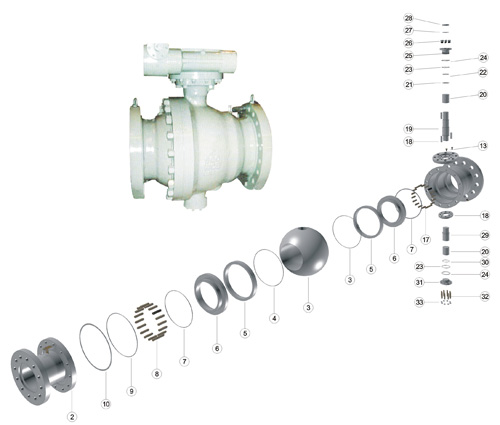

Detailed information

1	Body
2	Bonnet
3	Ball
4	Anti-fire Washer
5	Seat
6	Seat Retainer
7	"O"Ring
8	Spring
9	"O"Ring
10	Anti-tire Gasket
11	Hexagon Nut
12	Sealant Fitting
13	Check Valve
14	Release Valve
15	Anti-static Ball
16	Anti-static Spring
17	Stud
18	Key
19	Stem
20	Stem Bearing
21	Thrust Bearing
22	"O"Ring
23	"O"Ring
24	Anti-fire Gasket
25	Gland
26	Hexagon Screw
27	Packing
28	Packing Gland
29	Lower Stem
30	Sliding Gasket
31	Lower Cover
32	Stud
33	Hexagon Nut
34	Drain plug

Main Materials

Part Name	A	B	C	D	E	F

Body	WCB	WCB	WCB	CF8	CF8M	LCC/LCB
Seat Retainer	A105+ENP	F304	F316	F304	F316	LF2+ENP
Ball	A105+ENP	F304	F316	F304	F316	LF2+ENP
Seat	F6a	F304	F316	F304	F316	F6a
Stem	B7	B7M	B7M	B8	B8M	L7M
Nut	2H	2HM	2HM	8	8M	7M
Spring	17-7PH/INCONEU50CrVA
Seat	RPTFE/P-		-FE/PPLNYLON/DEVLON/MOLON/PEEK
O Ring	VITON
Packing	GRAPHI’			7PTFE
Anti-fire Gasket	304+GRAPHITE
