Cast steel soft sealing ball valve_Ball valve_China Jingjia Valve (Group) Co., Ltd.

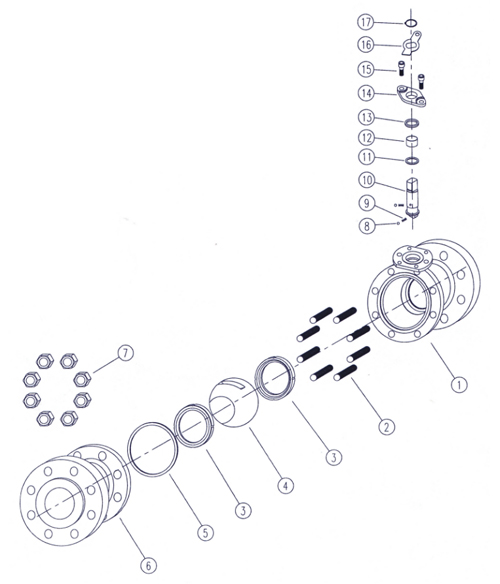

1	Bady
2	Stud
3	Seat
4	Ball
5	Antif-fire Gasket
6	Bonnet
7	Hexaqon Nut
8	Anti-Static Ball
9	Anti-Sratic Spring
10	Stem
11	Sliding Washer
12	Stem Bearing
13	packing
14	Packing Gland
15	Hexaqon Screw
16	Stopper
17	Elastic Back Ring

Main Materials

Part name	A	B	C	D	E	F
Bady	WCB	WCB	WCB	CF8	CF8M	LFF
Ball	A105+ENP	F304	F316	F304	F316	LF2+ENP
Stem	A105+ENP	F304	F316	F304	F316	LF2+ENP
Stud	B7M	B7M	B7M	B8	B8M	L7M
Nut	2HM	2HM	2HM	8	8M	7M
Seat	PTFE/PPL/NYLON/DEVLON/RPTFE/MOLON/PEEK
Packing	GRAPHITE/PTFE
Anti-fire Gasket	304+GRAPHITE
	306+GRAPHITE

Technical parameters

Nominal pressure	Nominal Dimension(DN)	Dimension (mm)													Weight
		L	d	D	D1	D2	D3	b	f	Z-+d0	W		H		(kg)
		L	d	D	D1	D2	D3	b	f	Z-+d0	Manual	Worm	Manual	Worm	Manual	Worm
PN16	15	130	14	95	65	45		16	2	4-14	140		85		3
	20	130	19	105	75	58		18	2	4-14	140		90		4
	25	140	25	1 15	85	68		18	2	4-14	150		99		5
	32	165	32	140	100	78		18	2	4-18	180		105		7
	40	165	38	150	1 10	88		18	3	4-18	200		126		8
	50	203	51	165	125	102		18	3	4-18	250		140		12
	65	222	64	185	145	122		18	3	8-18	300		165		17
	80	241	76	200	1 60	138		20	3	8-18	350		178		23
	100	305	102	220	1 80	158		20	3	8-18	500	305	230	380	35
	125	356	127	250	210	188		22	3	8-18	800	305	280	405	52
	150	394	152	285	240	212		22	3	8-22	800	305	310	460	76
	200	457	203	340	295	268		24	3	2-22	1000	305	350	550	134
PN25	15	130	14	95	65	45		16	2	4-14	140		85		3
	20	130	19	105	75	58		18	2	4-14	140		90		4
	25	140	25	1 15	85	68		18	2	4-14	150		99		5
	32	165	32	140	100	78		18	2	4-18	180		105		7
	40	165	38	150	1 10	88		18	3	4-18	200		126		9
	50	203	51	165	125	102		20	3	4-18	250		140		12
	65	222	64	185	145	122		22	3	8-18	300		165		19
	80	241	76	200	1 60	138		24	3	8-18	350		178		23
	100	305	102	235	1 90	162		24	3	8-22	500	305	230	380	45
	125	356	127	270	220	188		26	3	8-26	800	305	280	405	67
	150	394	152	300	250	218		28	3	8-26	800	305	310	460	95
	200	457	203	360	310	278		30	3	12-26	1000	305	350	550	170
PN40	15	130	14	95	65	45	40	16	2	4-14	140		85		3
	20	150	19	105	75	58	51	18	2	4-14	140		90		4
	25	160	25	1 15	85	68	58	18	2	4-14	150		99		5
	32	180	32	140	100	78	66	18	2	4-18	180		105		8
	40	200	38	150	1 10	88	76	18	3	4-18	200		126		11
	50	230	51	165	125	102	88	20	3	4-18	250		142		15
	65	290	64	185	145	122	1 10	22	3	8-18	300		1 65		20
	80	310	76	200	160	138	121	24	3	8-18	350	305	178	330	29
	100	350	102	235	1 90	162	150	24	3	8-22	500	305	230	380	48
	125	400	127	270	220	188	176	26	3	8-26	800	305	280	420	68
	150	403	152	300	250	218	204	28	3	8-26	800	305	310	480	98
	200	502	203	375	320	285	260	34	3	12-30	1000	400	350	560	178
PN63	15	130	14	105	75	45	40	18	2	4-14	140		79		5
	20	150	19	130	90	58	51	20	2	4-18	140		83		7
	25	160	25	140	100	68	58	22	2	4-18	200		114		9
	32	180	32	155	110	78	66	24	2	4-23	200		120		13
	40	200	38	170	125	88	76	24	3	4-23	250		125		17
	50	292	51	180	135	102	88	26	3	4-23	300		156		25
	65	330	64	205	160	122	110	28	3	8-23	350		172		42
	80	356	76	215	170	138	121	30	3	8-23	500	305	220	390	56
	100	406	102	250	200	162	150	32	3	8-25	650	305	250	440	85
PNlOO	15	165	14	105	75	55	40	20	2	4-14	140		79		5
	20	1 90	19	125	90	68	51	22	2	4-18	140		83		7
	25	216	25	135	100	78	58	24	2	4-18	200		114		9
	32	229	32	150	1 10	82	66	26	2	4-22	200		120		13
	40	241	38	165	125	95	76	28	3	4-22	250		125		17
	50	292	51	195	145	1 12	88	26	3	4-22	300		156		25
	65	330	64	220	170	138	1 10	26	3	8-22	350		172		42
	80	356	76	230	1 80	148	121	28	3	8-22	500	305	220	390	56
	100	432	102	265	210	172	150	30	3	8-26	650	305	250	440	85

Note: the flange size according to standard GB/T9112-9124 size. According to user requirements, the flange size can also be made according to HG/T20592 and JB/T79-94 standard size design and manufacturing.
