Storage tank type hydraulic control slow closing butterfly non-return valve_Hydraulic control valve set

1.can hold the device and can bold by two, can turn off the valve automatically when there is no outside energy.
2.it is reliable and flowing to hinder coefficient small to seal.
3.adopt PLC intelligent control system, can realize such many kinds of humanization as the text touch-sensitive screen, etc. Operate interfaces
4.can realize long-range,local control.
5.canrealize linking and operating with other pipelines equipment according to the procedure of booking.
6.have fast, slow adjustable closing the function.
7.close at, stop going back the function.
8.canrealize while closing that close the function slowly, dispel water hammer to endanger effectively, protect the security of the water pump and pipe network system.

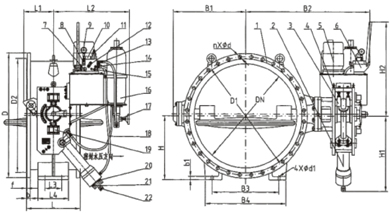

1、Body
2、Cylinder
3、Arm
4、Yoke
5、Motor
6、Manual Pump
7、Flow control valve
8、Pressure controller
9、Pressure Gauge
10、cartridge Valve
11、Solenoid valve (1)
12、Solenoid valve (2)
13、Globe valve
14、Non-retrun valve
15、Relief valve
16、Storage Tank
17、Storage Tank globe valve
18、作High pressure hose
19、Limit Switch
20、Fast closing adjusting valve
21、Slow closing adjusting valve
22、Fast and slow angle adjuster

Main dimensions of Storage tank type hydraulic control slow closing butterfly nonreturn valve Unit:(mm)

	L	D	D1	D2	b	f	n	d	L1	L2	L3	L4	H	H1	H2	B1	B2	B3	B4	b1	b2
300	270	440	395	363	24	4	12	23	210	705	100	150	300	650	860	280	765	320	380	30	30
350	290	490	445	413	24	4	12	23	210	705	100	140	320	650	860	605	810	320	380	30	30
400	310	540	495	463	24	4	16	23	210	705	120	180	350	650	860	365	860	340	420	30	30
500	350	645	600	568	26	d	20	23	235	745	150	220	400	730	1020	440	1 016	400	500	40	32
600	390	755	705	667	26	5	20	28	235	740	150	250	460	730	1020	525	1066	450	550	40	32
700	430	860	810	772	26	5	24	28	235	740	180	290	520	730	1020	555	1080	570	700	40	32
800	470	975	920	878	28	5	24	31	235	740	180	310	580	730	1020	605	1240	650	780	40	32
900	510	1075	1020	978	28	5	24	31	380	890	180	320	640	930	1160	670	1310	700	860	40	35
1000	550	1175	1120	1078	30	5	28	31	380	890	200	360	690	960	1160	755	136	740	900	40	35
1200	630	1405	1340	1295	30	5	32	34	380	890	200	360	810	960	1160	855	1500	790	850	40	35
1300	530	1520	1450	1405	32	5	32	37	380	890	260	400	860	960	1160	935	1565	820	860	40	42
1400	530	1630	1560	1510	32	5	36	37	460	920	260	400	940	960	1 210	1 010	1630	840	1000	40	42
1500	600	1730	1660	1 610	34	5	36	37	460	920	260	400	1000	1040	1210	1055	1670	900	1040	40	42
1600	600	1830	1760	1710	34	5	40	37	540	980	270	400	1080	1040	1320	1120	1830	1100	1300	40	42
1750	670	1995	1920	1868	36	5	44	40	540	980	300	500	1130	1105	1320	1175	1955	1350	1500	45	42
1800	670	2045	1970	1 918	38	5	44	40	540	980	300	500	1130	1105	1320	1 210	1980	1370	1570	45	42
2000	760	2265	2180	2125	40	5	48	43	680	1040	360	560	1250	1250	1380	1380	2250	1400	1650	45	42
2200	590	2475	2390	2335	42	6	52	43	680	1040	300	450	1320	1250	1380	1480	2350	1600	1880	45	42
2400	650	2685	2600	2545	45	6	56	43	850	1090	350	500	1440	1360	1540	1590	2470	1740	2020	45	48
2600	700	2905	2810	2750	46	6	60	49	850	1090	400	550	1520	1360	1540	1670	2520	1850	2200	50	48
2800	760	3115	3020	2960	48	6	64	49	850	1090	500	650	1620	1360	1540	1775	2630	2000	2400	50	48
3000	810	3315	3220	3160	50	6	68	49	920	1140	550	700	1720	1430	1620	1885	2770	2160	2560	50	48
3200	870	3525	3430	3370	54	6	72	49	920	1140	600	750	1820	1430	1620	1970	2910	2360	2760	50	48
3400	920	3735	3640	3580	56	6	76	49	920	1140	650	800	1920	1430	1620	2060	3050	2420	2920	50	48
3500	920	3840	3745	3685	58	6	80	49	920	1140	650	800	1980	1430	1620	2110	3120	2680	3180	50	48
3600	970	3970	3860	3790	62	6	80	56			700	850	2050					2750	3250	50	56
3800	1020	4180	4065	3990	66	6	80	62			750	900	2150					2880	3380	50	56
4000	1070	4380	4265	4190	70	6	84	62			800	950	2250					2980	3480	50	56

Main dimensions of Storage tank type hydraulic control slow closing butterfly non-retu rn valve Unit:(m m)

	L	D	D1	D2	b	f	n	d	L1	L2	L3	L4	H	H1	H2	B1	B2	B3	B4	b1	b2
300	270	445	400	370	26	4	12	23	210	705	100	150	300	650	860	280	765	320	380	30	30
350	290	505	460	429	28	4	16	23	210	705	100	140	320	650	860	305	810	320	380	30	30
400	310	565	515	480	32	4	16	28	210	705	120	180	350	650	860	365	860	340	420	30	30
500	350	670	620	582	34	4	20	28	235	745	150	220	400	730	1020	440	1016	400	500	40	32
600	390	780	725	682	35	5	20	31	235	740	150	250	460	730	1020	525	1066	450	550	40	32
700	430	895	840	794	35	5	24	31	235	740	180	290	520	730	1020	555	1080	570	700	40	32
800	470	1015	950	901	40	5	24	34	235	740	180	310	580	730	1020	605	1240	650	780	40	32
900	510	1115	1050	1001	40	5	28	34	380	890	180	320	640	960	1160	670	1310	700	860	40	35
1000	550	1230	1160	1112	42	5	28	37	380	890	200	360	690	960	1160	755	1360	740	900	40	35
1100	550	1340	1270	1222	42	5	28	37	380	890	200	360	750	960	1160	805	1410	760	920	40	35
1200	630	1455	1380	1328	45	5	32	40	460	920	200	360	810	1040	1210	855	1500	790	950	40	35
1250	530	1505	1430	1378	45	5	32	40	460	920	200	360	810	1040	1210	910	1525	1140	1280	40	42
1300	530	1575	1490	1425	45	5	32	43	460	920	260	400	860	1040	1210	935	1565	820	960	40	42
1400	530	1675	1590	1530	46	5	36	43	540	980	260	400	940	1105	1320	1010	1630	840	1000	40	42
1500	600	1785	1700	1640	46	5	36	49	540	980	260	400	1000	1105	1320	1055	1670	900	1040	40	42
1600	600	1915	1820	1750	50	5	40	49	540	980	270	400	1080	1105	1320	1120	1830	1100	1300	40	42
1750	670	2065	1970	1900	50	5	44	49	680	1040	300	500	1130	1250	1380	1175	1955	1350	1500	45	42
1800	670	2115	2020	1950	52	5	44	49	680	1040	300	500	1130	1250	1380	210	1980	1370	1570	45	42
2000	760	2325	2230	2150	54	5	48	49	850	1090	360	560	1250	1360	1540	1380	2250	1370	1650	45	48
2200	590	2550	2440	2370	58	5	52	56	850	1090	300	450	1320	1360	1540	1480	2350	1600	1880	45	48
2250	590	2600	2490	2420	60	5	52	56	850	1090	300	450	1330	1360	1540	1510	2375	1600	1880	45	48
2400	650	2760	2650	2570	65	6	56	56	920	1140	350	500	1440	1430	1620	1590	2470	1740	2020	45	48
2600	700	2960	2850	2780	65	6	60	56	850	1090	400	550	1520	1360	1540	1670	2520	1850	2200	50	42
2800	760	3180	3070	3000	70	6	64	56	850	1090	500	650	1620	1360	1540	1775	2630	2000	2400	50	48
3000	810	3405	3290	3210	75	6	68	62	920	1140	550	700	1720	1430	1620	1885	2770	2160	2560	50	48

Main dimensions of Storaae tank tVpe hVd raulic control slow closina butterflV non—retu rn valve Unit:(mm)

	L	D	D1	D2	b	f	n	d	L1	L2	L3	L4	H	H1	H2	B1	B2	B3	B4	b1	b2
300	270	460	410	375	26	4	12	27	210	705	100	150	300	650	860	280	765	320	380	30	30
350	290	520	470	429	28	4	16	27	210	705	100	140	320	650	860	305	810	320	380	30	30
400	310	580	525	480	32	4	16	31	210	705	120	180	350	650	860	365	860	340	420	30	30
500	350	715	650	609	34	4	20	34	235	740	150	220	400	730	1020	440	1020	400	500	40	32
600	390	840	770	720	35	5	20	37	235	740	150	250	460	730	1020	525	1060	450	550	40	32
700	430	910	840	794	35	5	24	37	235	740	180	290	520	730	1020	555	1080	570	700	40	32
800	470	1025	850	901	40	5	24	40	380	890	180	310	580	960	1160	605	1240	650	780	40	32
900	510	1125	1050	1001	40	5	28	40	380	890	180	320	640	960	1160	670	1310	700	860	40	35
1000	550	1255	1170	1112	42	5	28	43	460	920	200	360	690	1040	1210	755	1360	740	900	40	35
1100	550	1370	1280	1222	42	5	28	43	460	920	200	360	750	1040	1210	805	1410	760	920	40	35
1200	530	1485	1390	1328	45	5	32	49	540	980	200	360	810	1105	1320	855	1500	790	950	40	35
1250	530	1535	1440	1378	46	5	32	49	540	980	200	360	810	1105	1320	910	1525	1140	1280	40	42
1300	530	1585	1490	1425	50	5	32	49	540	980	260	400	860	1105	1320	935	1565	820	960	40	42
1400	530	1685	1590	1530	54	5	36	49	540	980	260	400	940	1105	1320	1010	1630	840	1000	40	42
1500	600	1820	1710	1640	54	5	36	49	540	980	260	400	1000	1105	1320	1055	1670	900	1040	40	42
1600	600	1930	1820	1750	56	5	40	56	680	1040	270	400	1080	1250	1380	1120	1830	1100	1300	40	42
1750	670	2080	1970	1900	60	5	44	56	680	1040	300	500	1130	1250	1380	1175	1955	1350	1500	45	42
1800	670	2308	2020	1950	60	5	44	56	680	1040	300	500	1130	1250	1380	1210	1980	1370	1570	45	42
2000	760	2345	2230	2150	65	5	48	62	850	1090	360	560	1250	1360	1540	1380	2250	1370	1650	45	48
2200	590	2555	2440	2360	70	6	52	62	850	1090	300	450	1320	1360	1540	1480	2350	1600	1880	45	48
2250	590	2605	2490	2410	70	6	52	62	850	1090	350	500	1330	1360	1540	1510	2375	1600	1880	45	48

Main dimensions of Storage tank type hydraulic control slow closing butterfly non-return valve Unit:(mm)

	L	D	D1	D2	b	f	n	d	L1	L2	L3	L4	H	H1	H2	B1	B2	B3	B4	b1	b2
300	270	485	430	389	34	4	16	31	210	705	100	150	300	650	860	280	765	320	380	30	30
350	290	555	490	448	38	4	16	34	210	705	100	150	320	650	860	305	810	320	380	30	30
400	310	620	550	503	40	4	16	37	235	740	120	180	350	730	1020	365	860	340	420	30	32
500	350	730	660	609	44	4	20	37	235	740	150	220	400	730	1020	440	1016	400	500	40	32
600	390	845	770	720	46	5	20	40	235	740	150	250	460	730	1020	525	1066	450	550	40	35
700	430	960	875	820	50	5	24	43	380	890	180	290	520	960	1160	555	1080	570	700	40	35
800	470	1085	990	928	54	5	24	49	380	890	180	310	580	960	1160	605	1240	650	780	40	35
900	510	1185	1090	1028	58	5	28	49	380	890	180	320	640	1040	1210	670	1310	700	860	40	42
1000	550	1320	1210	1140	62	5	28	56	460	920	200	360	690	1105	1320	755	1360	740	900	40	42
1100	550	1425	1315	1245	65	5	28	56	560	920	200	360	750	1105	1320	805	1410	760	920	40	42
1200	630	1530	1420	1350	70	5	32	56	560	920	200	360	810	1105	1320	855	1500	790	950	40	42
1250	530	1575	1470	1400	70	5	32	56	560	920	200	360	810	1105	1320	910	1525	1140	1280	40	42
1300	530	1640	1530	1450	74	5	32	62	560	920	260	400	860	1105	1320	935	1565	820	960	40	42
1400	530	1755	1640	1560	76	5	36	62	540	980	260	400	940	1250	1380	1010	1630	840	1000	40	42
1500	600	1865	1750	1670	80	5	36	62	540	980	260	400	1000	1250	1380	1055	1670	900	1040	40	42
1600	600	1975	1860	1780	84	5	40	62	540	980	270	400	1080	1250	1380	1120	1830	1100	1300	40	42
1750	670	2145	2020	1935	90	5	44	70	680	1040	300	500	1130	1360	1540	1175	1955	1350	1500	45	48
1800	670	2195	2070	1985	90	5	44	70	680	1040	300	500	1130	1360	1540	1 210	1980	1370	1570	45	48
