一、Purpose
It is a directly acting adjustable pressure reducing valve, uses the membrane hydraulic operation and can be mounted vertically or horizontally in the water supply, fire-fighting of other pure water system. The outlet pressure can be controlled at a relatively stable value within a certain range.
It is inner-thread connected, features an exquisite shape, easy installation etc. and is equipped with a built-in filter screen to make it integrally mounted and operated, without being blocked up with foreign matters and safer and more reliable.
二、Main Technical Parameters
型号 Model |
公称压力 PN(MPa) |
Body test pressure |
Seat ring test pressure |
Max flow rate |
Pressure reduction range |
200P-10T |
1.0 |
1.5 |
11 |
6 |
≤ 0.7MPa |
200P-16T |
1.6 |
2.4 |
1.76 |
三、Material For Main Parts
Part |
Body,disc |
Filter screen.nut. washer.spring gland |
Spring |
O-ring |
Material |
Al-bronze |
Stainless steel |
60Si2Mn |
Chemigum |

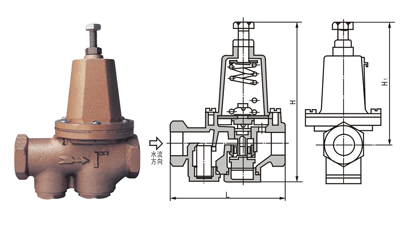

四、Main External Dimensions
公称通径 DN(mm) |
Dimensions |
L |
H |
H1 |
15 |
112 |
170 |
130 |
20 |
112 |
183 |
130 |
25 |
135 |
189 |
143 |
32 |
165 |
242 |
195 |
40 |
192 |
273 |
222 |
50 |
231 |
307 |
252 |
|
