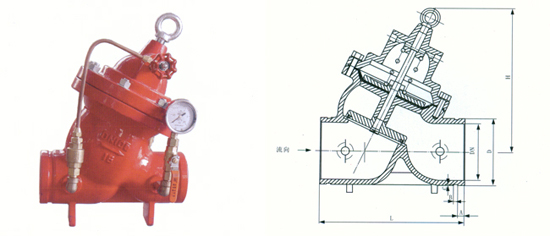

一、 STRUCTURE AND PURPOSS

Used on the pump outlet of a water supply system to prevent medium’s back-flow,water-hammer and water shock,combining three functions as an electric valve,check valve and water hammer remover,capable of effectively raisingsafety and reliability of the water supply system,integrating the technical principle of slow-open,speed valve,slow-close renoving water hammer and preventing both pump-starting and pump-stopping water hammers from being formed.The gate can automatically carry out open -close upon the operation rules of the water pump just by operating the pump to open or close electrically.This valve features a big flow and a small pressure loss.Reliable sealing performance,easy installation,debugging and maintenance and a long duration.

二、 FEATURE


1.Good effect of water hammer removal.Integrating the technical principles of water hammer removal by means of slow-open,quick-close and slow-open so as to prevent the water hammer at both pump start and stop from being formed.
2.Easy operation.The valve will automatically open or close per the operation procedures of the pump once the On-Off button of the pump’s motor is operated.
3.Good effect of energy saving.The valve body is so designed as full-path streamline straight-flow type,resuling in a small pressure loss,a big flow,a small volume and a light weight.

三、 SCHEMATIC DIAGRAM OF INSTALLATION
