Lug

Lug Type buttefly Valve

Detailed information

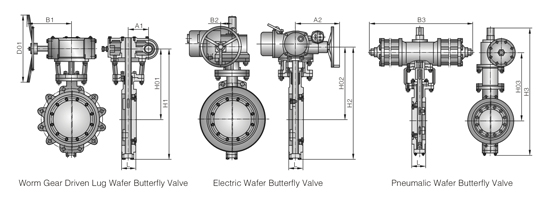

Main Outline Dimensions & Weight Class 300

NPS	L	Pneumatic			Worm gear actuation					Electric				Weight (kg)
NPS	L	H3	Ho3	B3	H1	Ho1	B1	A1	Do1	H2	Ho2	B2	A2	WF	WL
3″	49	-	-	-	320	185	140	63	160	513	263	178	180	13.5	15.5
4″	54	-	-	-	342	195	140	63	160	535	282	178	180	18	21
5″	57	-	-	-	365	209	140	63	300	563	293	178	180	24	28
6″	59	-	-	-	415	243	140	63	300	602	322	178	180	28	34
8″	73	750	368	275	510	263	150	84	400	745	296	235	370	49	60
10″	83	909	442	378	567	295	150	84	400	805	325	235	370	68	88
12″	92	1075	535	530	665	342	200	108	600	883	365	235	370	109	117
14″	117	1158	572	530	739	385	200	108	600	965	408	235	370	186	207
16″	133	1230	610	530	825	430	240	152	600	1033	443	235	370	264	308
18″	149	1462	736	680	910	469	240	152	800	1120	485	235	370	297	408
20″	159	1328	765	680	990	500	300	168	800	1186	518	235	370	363	468
24″	181	-	-	-	1210	618	320	192	800	1380	625	235	370	454	748
30″	254	-	-	-	1937	1180	512	279	600	1516	716	360	540	816	1338
36″	305	-	-	-	2198	1298	570	368	600	1669	794	360	540	1429	2154
42″	324	-	-	-	2318	1358	570	368	600	1914	914	360	540	2155	2427

Main Outline Dimensions & Weight Class 600

6″	78	-	-	-	415	243	140	63	300	602	322	178	180	45	56
8″	102	750	368	275	510	263	150	84	400	745	296	235	370	70	94
10″	117	909	442	378	567	295	150	84	400	805	325	235	370	103	141
12″	140	1075	535	530	665	342	200	108	600	883	365	235	370	149	201
14″	155	1158	572	530	739	385	200	108	600	965	408	235	370	243	333
16″	178	1230	610	530	825	430	240	152	600	1033	443	235	370	318	401
18″	200	-	-	-	910	469	240	152	800	1120	485	235	370	431	575
20″	216	-	-	-	990	500	300	168	800	1186	518	235	370	472	708
24″	232	-	-	-	1210	618	320	192	800	1380	625	235	370	826	1061

Note: The weight in the table is that without drive unit. WF is wafer butterfly valve, and WL is lug wafer butterfly valve.
