You are here ：Home - Product show - -Hange Type Butterfly valve

Hange

Hange Type Butterfly valve

Detailed information

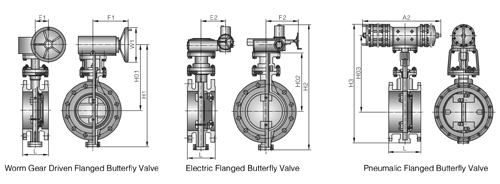

Main Outline Dimensions & Weight Class 150

NPS	L	Worm gear actuation					Electric				Pneumatic			Weight (kg)
NPS	L	H1	H01	E1	F1	W1	H2	H02	E2	F2	H3	Ho3	A3	Weight (kg)
3"	114	472	350	50	203	203	513	263	180	178	-	-	-	15.4
4"	127	520	386	60	191	203	535	282	180	178	-	-	-	23
5"	140	580	395	60	215	250	563	293	180	178	-	-	-	29
6"	140	653	475	67	289	305	602	322	180	178	-	-	-	33
8"	152	773	565	67	308	460	745	296	370	235	690	323	275	50
10"	165	880	640	86	346	460	805	325	370	235	750	355	275	73
12"	178	989	711	111	403	610	883	365	370	235	955	475	378	108
14"	190	1044	760	60	601	356	965	408	370	235	1032	513	378	143
16"	216	1142	826	60	605	457	1033	443	370	235	1182	598	530	186
18"	222	1228	887	60	652	610	1120	485	370	235	1265	635	530	234
20"	229	1337	959	60	805	762	1186	518	370	235	1335	667	530	277
24"	267	1554	1109	103	763	762	1380	625	370	235	1642	830	680	408
28"	292	1456	956	245	400	315	1587	745	515	245	1711	859	680	653
30"	318	1541	991	310	460	400	1650	777	515	245	1782	910	680	816
32"	318	1611	1036	310	460	400	1717	810	515	245	1856	942	680	914
36"	330	1743	1103	410	480	400	1870	875	540	360	1920	975	680	1157
40"	410	1868	1173	410	480	400	2030	965	540	360		-	-	1610
44"	410	1968	1223	410	480	400	2078	1022	540	360		-	-	2160
48"	470	2145	1320	520	640	400	2188	1100	540	360		-	-	2359
52"	470	2300	1405	520	640	400	2214	1150	565	385		-	-	2720
56"	530	2440	1475	520	640	400	2328	1325	565	385		-	-	3353
60"	530	2594	1559	450	785	630	2530	1515	565	385		-	-	3629
64"	600	2730	1630	-	-	-	-	-	-	-		-	-	-
66"	600	2830	1670	-	-	-	-	-	-	-		-	-	-
73"	670	3000	1765	-	-	-	-	-	-	-		-	-	-
80"	760	3280	1885	-	-	-	-	-	-	-		-	-	-
84"	760	3395	1945	-	-	-	-	-	-	-		-	-	-
96"	760	3740	2140	-	-	-	-	-	-	-		-	-	-
112"	760	4290	2390	-	-	-	-	-	-	-		-	-	-
120"	760	4515	2505	-	-	-	-	-	-	-		-	-	-
140"	800	4810	2650	-	-	-	-	-	-	-		-	-	-
160"	900	5145	2800	-	-	-	-	-	-	-		-	-	-

Note: Structural length of valves in the table: 300Lb, to ISO5752 13 series; 600Lb, to ISO5752 14 series.
