V型球阀

详细信息

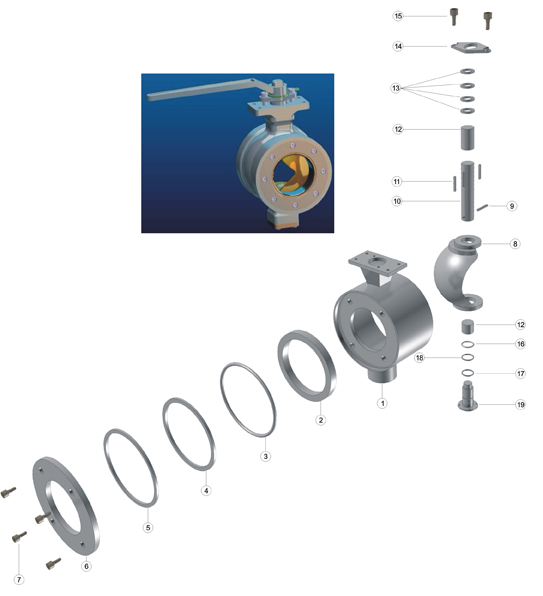

1	阀体	Body
2	阀座	Seat
3	O型圈	O Ring
4	平板弹簧	Disc spring
5	金属缠绕垫	Metalwound gasket
6	预紧圈	Clamping ring
7	内六角螺钉	Socket head cap screw
8	球体	Ball
9	销	Pin
10	阀杆	Stem
11	平键	Flat Key
12	滑动轴承	Sliding beanng
13	填料	Packing
14	填料压盖	Packing gland
15	内六角螺钉	Socket head cap screw
16	推力轴承	Thrust bearing
17	O型圈	o Ring
18	金属缠绕垫	Metalwound gasket
19	底盖	Lower cover

Nominal diameter(in)			NPS 1-12
Nominal pressure(Mpa)			Cass 150-Class300
Materialsof parts	NO．	Part name	Materials
	NO．	Part name	Carbon steel Stainless steel
	1	Body	ASTM A216 WCB	ASTM A351 CF8	ASTM A351 CF8M	ASTM A351 CF3	ASTM A351 CF3M
	2	Seat	ASTM A105+HF	ASTM A182 304+HF	ASTM A182 316+HF	ASTM A182 304L+HF	ASTM A182 316L+HF
	3	O Ring	VITON
	4	Disc spring	17-7PH
	5	Metalwound gasket	SST+Graphite
	6	Clamping ring	ASTM A105 . ENP	ASTM A182 304	ASTM 182 316	ASTM 182 304L	ASTM 182 316L
	7	Socket head cap screw	A193 B7M	A320 88	A320 88M	A320 88	A320 88M
	8	Ball	ASTM A216 WCB+HF	ASTM A351 CF8+HF	ASTM A351 CF8M+HF	ASTM A351 CF3+HF	ASTM A351 CF3M+HF
	9	Pin	ANSI 1035	ANS11035	ANS11035	ANS11035	ANS11035
	10	Stem	ASTM A182 F6a	ASTM A182 304	ASTM A182 316	ASTM A182 304L	ASTM A182 316L
	11	Flat Key	ANSI 1045	ANS11045	ANS11045	ANS11045	ANS11045
	12	Sliding bearing	MetaI+PTFE	MetaI+PTFE	MetaI+PTFE	MetaI+PTFE	MetaI+PTFE
	13	Packing	Graphite
	14	Packing gland	ASTM A216 WCB	ASTM A216 WCB	ASTM A216 WCB	ASTM A216 WCB	ASTM A216 WCB
	15	Soket head cap screw	A193 87M	A193 87M	A193 87M	A193 87M	A193 87M
	16	Thrust beanng	PTFE
	17	O Ring	VITON
	18	Metalwound gasket	SST+Graphite
	19	Lower cover	ASTM A105 . ENP	ASTM A182 304	ASTM A182 316	ASTM A182 304L	ASTM A182 316L
Applicable service		Appl:cable media	Water,steam,oil,gas,liquefled petroleum gas and natural gas etc	Nitric acid	Acetic acid	Strong Oxidizer	Urea
condibons		Applicable temperature	Regular products:=200℃,special orders:=425℃R(carbon steel) or=540℃(Cr-Mo steel, Cr-Mo-V steel, stainless steel)
Design and manufactu ring			AP1608. AP16D
Face-to-face dimensions			ASME B16.10、AP16D
Type of connecton			Flange	ASME B16.5		Wafer	ASME B16.5
pressure test			AP1598. APL6D
Transmission mode			Manual,worrn and worm gear Uansmission,pneumatic,electric

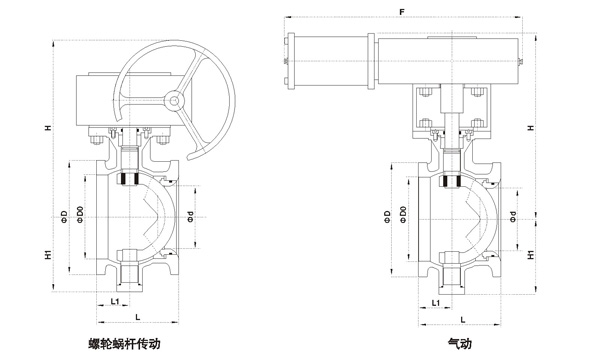

公称压力	公称尺寸		尺寸(mm)									重量( kg)
	DN	NPS	L	L1	d	D	D2	H1	F	H		重量( kg)
	DN	NPS	L	L1	d	D	D2	H1	F	蜗轮	气动	蜗轮	气动
Class150 PN20	25	1	50	25	19	65	38	57	400	200	220	8	18
	40	1-1/2	60	25	32	84	49	63	400	205	228	10	20
	50	2	75	32	38	103	60	92	400	225	248	14	23
	65	2-1/2	85	38	51	122	75	100	400	235	255	18	27
	80	3	100	45	64	135	89	108	400	260	270	22	30
	100	4	115	50	76	173	113	117	400	270	278	30	38
	125	5	135	55	102	195	140	140	455	320	335	39	46
	150	6	160	65	127	220	164	177	455	340	358	52	59
	200	8	200	80	152	227	205	200	700	390	405	68	80
	250	10	240	92	203	337	259	252	700	420	449	95	120
Class300 PN50	25	1	50	25	19	72	38	27	400	200	222	9	19
	40	1-1/2	60	25	32	94	49	63	400	205	225	12	22
	50	2	75	32	38	110	60	92	400	225	248	16	25
	65	2-1/2	85	38	51	127	75	100	400	235	255	20	29
	80	3	100	45	64	147	89	108	400	260	270	25	33
	100	4	115	50	76	179	113	117	400	270	278	30	38
	1253	5	135	55	102	214	140	140	455	320	335	45	52
	150	6	160	65	127	249	164	177	455	340	358	60	67
	200	8	200	80	152	305	205	200	700	390	405	80	92
	250	10	240	92	203	359	259	252	700	420	449	110	135

公称压力	公称尺寸	尺寸(mm)									重量( kg)
	DN	L	L1	d	D	Dc	H1	F	H		重量( kg)
	DN	L	L1	d	D	Dc	H1	F	蜗轮	气动	蜗轮	气动
PN16	25	50	25	20	73	38	57	400	200	222	9	19
	40	60	25	32	93	49	63	400	205	228	11	21
	50	75	32	38	108	60	92	400	225	248	15	24
	65	85	38	50	128	75	100	400	235	255	19	28
	80	100	45	64	142	89	108	400	260	270	23	31
	100	115	50	76	162	113	117	400	270	278	29	37
	125	135	55	100	192	140	140	455	320	335	39	46
	150	160	65	125	218	164	177	455	340	358	52	59
	200	200	80	150	273	205	200	700	390	405	67	79
	250	240	92	200	329	259	252	700	420	449	93	118
PN25	25	50	25	20	72	38	57	400	200	222	9	19
	40	60	25	32	93	49	63	400	205	228	11	21
	50	75	32	38	108	60	92	400	225	248	15	24
	65	85	38	50	128	75	100	400	235	255	19	28
	80	100	45	64	142	89	108	400	260	270	23	31
	100	115	50	76	168	113	117	400	270	278	30	39
	125	135	55	100	194	140	140	455	320	335	40	49
	150	160	65	125	224	164	177	455	340	358	54	64
	200	200	80	150	284	205	200	700	390	405	70	85
	250	240	92	200	341	259	252	700	420	449	98	124
PN40	25	50	25	20	72	38	57	400	200	222	11	22
	40	60	25	32	93	49	63	400	205	228	13	24
	50	75	32	38	108	60	92	400	225	248	18	29
	65	85	38	50	128	75	100	400	235	255	23	36
	80	100	45	64	142	89	108	400	260	270	27	38
	100	115	50	76	168	113	117	400	270	278	35	48
	125	135	55	100	194	140	140	455	320	335	47	62
	150	160	65	125	224	164	177	455	340	338	60	78
	200	200	80	150	291	205	200	700	390	405	83	98
	250	240	92	200	353	259	252	700	320	449	118	154
