蓝式过滤器(相关下载)
蓝式过滤器
详细信息

二、概况Profile
篮式过滤器是过滤器中的佼佼者,它比其他过滤器技术要求高,主要用于管道上,来处理管内高精度液体。
Basket Strainer is leader of strainers,with higher technical requirement, It mainly used in tubes to deal with high precision liquid.
三、工作原理Working Principle
该过滤器设计合理,使用方便,可打开上盖拿出滤网处理污物,不会带有污物留在管内,滤网采用40-200目。
The filter design is reasonable,easy to use,open the cover processing the dirt with out dirt in the tube using 40-200 mesh strainer.
四、使用说明Use instructions
安装前先检查产品螺丝有没有松脱,污物有没带入过滤器内,此产品一定要安装管道出口前(否泵前),安装时请注意流向标志,在使用时一定要定期清理过滤器滤网。Check products before installation of there are loose screws tracks,lf there is dirl into the filter the product mastba installed before the pipe outlet,Please pay attention to tha straam direction whan installation and the filter must be clean when it works.
五、技术参数及材料 Technical date sheet and materials
工作压力:1.6. 2.5. 4.OMPa
壳体:钢管20
试验压力:2.4. 3.8. 6.0
滤芯:304不锈钢滤网可根据设计要求定制。
Working presure:1.6,2.5, 4.OMPa
Body: steel tube 20#
Testing pressure: 2.4,3.8,6.0
Element: 304 stainless steel filter can according to the design requirements.

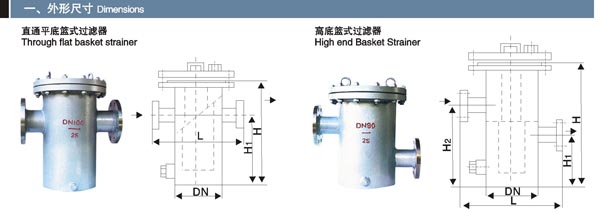

SB34复式过滤器安装尺寸SB34 Duplex Strainer mounting size YG07筒形泵前过滤器安装尺寸YG07 The Cylindncal Pump Strainer mounting size
公称通径  尺寸( mm)
管塞
L H H1 DO
25 180 260 160 76 R3/4"
32 200 270 160 76 R3/4"
40 260 300 170 108 R3/4"
50 260 300 170 108 R3/4"
65 330 360 210 133 R3/4"
80 340 400 250 159 R3/4"
100 400 470 300 219 R3/4"
125 480 550 360 273 R3/4"
150 500 630 420 273 R3/4"
200 560 780 530 325 R3/4"
250 660 930 640 426 M20x1.5
300 750 1200 840 478 M20x1.5
400 850 1400 920 530 M35x2.0
500 100 1500 1050 630 M35x2.0
600 1380 2000 1400 800 M35x2.0
800 1500 2300 1640 950
公称通径 尺寸( mm) 管塞
L H H1 H2 DO
25 180 280 110 180 76 R3/4"
32 200 285 110 180 76 R3/4"
40 260 340 120 220 108 R3/4"
50 260 340 120 220 108 R3/4"
65 330 400 160 270 133 R 3/4"
80 340 460 180 320 159 R3/4”
100 400 550 220 390 219 R3/4"
125 480 630 260 450 273 R3/4"
150 500 720 310 530 273 R3/4"
200 560 900 390 670 325 R 3/4"
250 660 1070 480 800 426 M20x1.5
300 750 1360 640 1040 478 M20x1.5
400 850 1500 600 1100 530 M35x2.0
500 1050 1600 640 1200 630 M35x2.0
600 1380 2000 700 1300 800 M35x2.0
- -  - -   -  -  -
