液控带旁阀联动蝶阀

详细信息

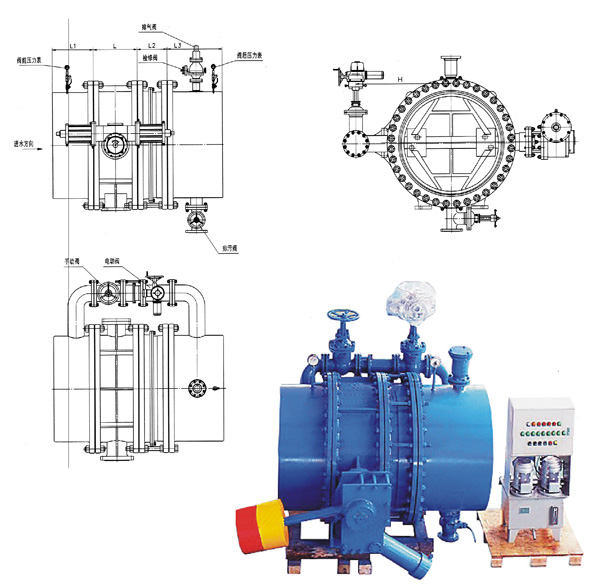

HBQ 747(H)蓄能式液控缓闭阀带旁通联动主要外形尺寸
Main dimension of HBQ 747(H) storage tank type hydraulic control slow closing valve with bypass valve combination >

公称通径 DN Nominal Diameter DN	L 蝶阀 L-butterfly valve	L1	L2 max	L2 min	L3	参考选型 Recommended valVe selection					使用压力 Working pressure
公称通径 DN Nominal Diameter DN	L 蝶阀 L-butterfly valve	L1	L2 max	L2 min	L3	手动阀 Manual Valve	电动阀 Vectne Valve	排气阀 Vent Valve	排气检修阀 Vent valve for maintenance	排污阀 Drain valve	使用压力 Working pressure
500	229	350	340	300	350	50D343H	50D943H	50QB1 50CARX	50241H 50Q41F	50241H 50Q41F	P≤16
500	350	360	340	300	360	50241H 50Q41F	502941H 50Q941F	50QB1 50CARX	50241H 50Q41F	50241H 50Q41F	P≥25
600	267	380	360	320	380	60D343H	60D943H	65QB1 65CARX	65241H 65Q41F	65241H 65Q41F	P≤16
600	390	400	360	320	400	60241H 50Q41F	602941H 50Q941F	65QB1 65CARX	65241H 65Q41F	65241H 65Q41F	P≥25
700	292	430	380	340	430	80D343H	80D943H	80QB1 80CARX	80241H 80Q41F	80241H 80Q41F	P≤16
700	430	450	380	340	450	80241H 80Q41F	802941H 80Q941F	80QB1 80CARX	80241H 80Q41F	80241H 80Q41F	P≥25
800	318	480	400	360	480	80D343H	80D943H	80QB1 80CARX	80241H 80Q41F	80241H 80Q41F	P《16
800	470	500	400	360	500	80241H 80Q41F	802941H 80Q941F	80QB1 80CARX	80241H 80Q41F	80241H 80Q41F	P≥25
900	330	480	430	390	480	100D343H	100D943H	100QB1 100CARX	100241H 100Q41F	100241H 100Q41F	P≤16
900	510	500	430	390	500	100241H 100Q41F	1002941H 100Q941F	100QB1 100CARX	100241H 100Q41F	100241H 100Q41F	P≥25
1000	410	520	430	390	520	100D343H	100D943H	100QB1 100CARX	100241H 100Q41F	100241H 100Q41F	P≤16
1000	550	550	430	390	550	100241H 100Q41F	1002941H 100Q941F	100QB1 100CARX	100241H 100Q41F	100241H 100Q41F	P≥25
1200	470	550	450	410	550	125D343H	125D943H	125QB1 125CARX	125241H 125Q41F	125241H 125Q41F	P≤16
1200	630	600	450	410	600	125241H 125Q41F	1252941H 125Q941F	125QB1 125CARX	125241H 125Q41F	125241H 125Q41F	P≥25
1400	530	550	450	410	550	150D343H	150D943H	150QB1 150CARX	150241H 150Q41F	150241H 150Q41F	P《16
1400	710	600	450	410	600	150241H 150Q41F	1502941H 150Q941F	150QB1 150CARX	150241H 150Q41F	150241H 150Q41F	P≥25
1600	600	600	470	420	600	150D343H	150D943H	150QB1 150CARX	150241H 150Q41F	200241H 150Q41F	P≤16
1600	790	650	470	420	650	150241H 150Q41F	1502941H 150Q941F	150QB1 150CARX	150241H 150Q41F	200241H 150Q41F	P≥25
1800	670	600	470	420	600	200D343H	200D943H	200QB1 200CARX	200241H 200Q41F	200241H 200Q41F	P≤16
1800	810	650	470	420	650	200241H 200Q41F	2002941H 200Q941F	200QB1 200CARX	200241H 200Q41F	200241H 200Q41F	P≥25
2000	760	650	470	420	650	200D343H	200D943H	200QB1 500CARX	200241H 500Q41F	200241H 500Q41F	P≤16
2000	950	700	470	420	700	200241H 200Q41F	2002941H 200Q941F	200QB1 500CARX	200241H 500Q41F	200241H 500Q41F	P≥25
2200	590	700	500	450	700	200D343H	200D943H	200QB1 200CARX	200241H 200Q41F	250241H 200Q41F
2400	650	700	500	450	700	250D343H	250D943H	250QB1 250CARX	250241H 250Q41F	150241H 250Q41F
2600	700	700	500	450	700	300D343H	300D943H	300QB1 300CARX	300241H 300Q41F	300241H 300Q41F
2800	760	800	520	470	800	300D343H	300D943H	300QB1 300CARX	300241H 300Q41F	300241H 300Q41F
3000	810	800	520	470	800	300D343H	300D943H	300QB1 300CARX	300241H 300Q41F	300241H 300Q41F

注：★球阀的结构长度由压力等级确定。
Note:★The face to face length of ball valve is determined by the pressure rating.
