| 1．产品特点Features |
2．主要零件及材质Main parts and Materials |
四通换向球阀为X形垂直通道的球阀，它的特点是球体的两条通道为X形布置，四个通道口径均布于球体赤道圆周截面上，当球体沿顺时针旋转90时，能使相邻的两个通道实现两两互通。
Four-way direction changeable ball value is a king of ball value with X-pattern vertical bore.lt’sfeature is,the ball valves two bores are arranged to be X-pattem and its forbears are connected toeach other two of adjacant bores can be connected to each other.
本阀门系列可配置多种驱动装置
TThis ball valve can be equippde with several types of operation device. |
| 零件名称 |
材质Material |
Accessory name
|
GB |
ASTM |
| 阀体、阀盖Body、bonnet |
WCB |
A216-WCB |
| 密封圈Seat |
PTFE、对位聚苯
PTFE、Counterpoint
polyphenyl |
PTFE、对位聚苯
PTFE、Counterpoint
polyphenyl |
| 球体Ball |
1Cr18Ni9T1 |
SS 304 |
| 阀座、阀杆Seat、Stem |
2Cr13 |
A276-410 |
双头螺柱
Dual-head double-screw bolt |
35CrMoA |
A193-B7 |
|
|
| 3．主要性能规范Main Performance Spcification |
公称压力
PN（mpa)
Nominal pressure
|
试验压力(MPa)Test presssure |
壳体
Shell |
高压液密封
High-pressure
liquid seeling |
低压气密封
Low-pressure
hermetic seeling |
| 1.6 |
2.4 |
1.76 |
0.6 |
2.5
|
3.75
|
2.75 |
| 4.0 |
6.0 |
4.4 |
| CLASS150 |
3.0 |
2.2 |
应用规范
Applicable
Specification |
适用介质
Applicable medium
|
水、油品、气等非腐蚀介质和酸碱腐蚀介质
Non-corrosion medium such as water,oil products,
and gas, etc,and nitric acid corrosion medium |
适用温度
Applicable temperature |
-25⌒280t |
适用工况
Applicable
Operating
Mode |
连接法兰
Connectingflanger |
JB79-94、GB9113、 HG20592-09、ANSIB16.5 |
检验试验
Test and inspection |
JB/T9092-99、AP1598 |
其余制造规范均按本厂标准
Other manufacturing standard is according to the standard of our factory | |
 |

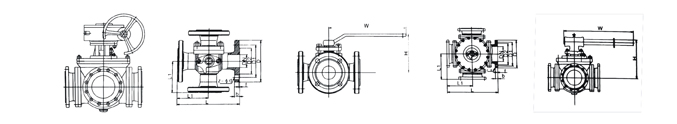

| 4．主要外形尺寸及连接尺寸表Form of Main Types and Connecting Dimension |
公称压力
或压力级
Norminal pressure |
主要尺寸 |
公称尔通径DN（mn/in）Nominal diameter |
| 15/1/2" |
20/3/4" |
25/1" |
32/1/4" |
40/11/2" |
50/2" |
65/2/1" |
80/3" |
100/4" |
125/5" |
150/6" |
200/8" |
| PNl.6MPa |
L |
150 |
150 |
180 |
200 |
220 |
240 |
260 |
280 |
320 |
380 |
440 |
550 |
| PN2.5MPa |
L1 |
75 |
75 |
90 |
100 |
110 |
120 |
130 |
140 |
160 |
190 |
220 |
275 |
| PN4.OMpa |
H |
90 |
90 |
102 |
115 |
135 |
140 |
155 |
185 |
210 |
275 |
305 |
335 |
| CLASS150 |
W |
140 |
140 |
155 |
250 |
250 |
350 |
350 |
420 |
700 |
1000 |
1300 |
1800 |
其余的法兰尺寸请参阅样本《主要外型及连接尺寸表》
Please refer to the sample book of Form of Mian Types and Connecting Dimension for other flange dimension | |
