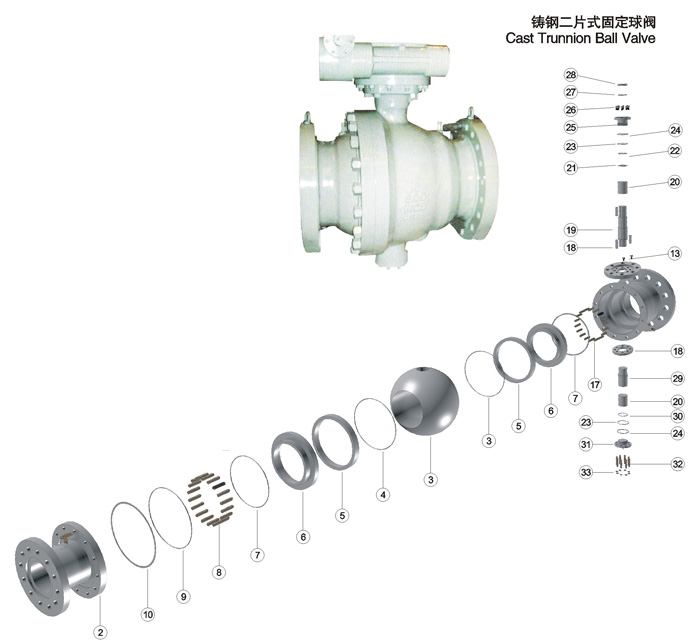

| 1 |
阀体 |
Body |
| 2 |
球体 |
Ball |
| 3 |
阀座 |
Seat |
| 4 |
阀座支承圈 |
Seat Retainer |
| 5 |
O型圈 |
"O"Ring |
| 6 |
弹簧 |
Spring |
| 7 |
防火垫圈 |
Anti-fire Washer |
| 8 |
防静电钢球 |
Anti-static Ball |
| 9 |
防静电弹簧 |
Anti-static Spring |
| 10 |
O型圈 |
"O"Ring |
| 11 |
滑动轴承 |
Stem Bearing |
| 12 |
滑动轴承 |
Sliding Washer |
| 13 |
O型圈 |
"O"Ring |
| 14 |
防火密封垫圈 |
Anti-fire Gasket |
| 15 |
阀盖 |
Bonnet |
| 16 |
双头螺柱 |
Stud |
| 17 |
六角螺母 |
Hexagon Nut |
| 18 |
填料 |
Packing |
| 19 |
填料压盖 |
Packing Gland |
| 20 |
内六角螺钉 |
Hexagon Screw |
| 21 |
平键 |
Key |
| 22 |
滑动垫片 |
Sliding Gasket |
| 23 |
防火密封垫片 |
Anti-fire Gasket |
| 24 |
底盖 |
Lower Cover |
| 25 |
止回阀 |
Check Valve |
| 26 |
注脂阀 |
Sealant Fitting |
| 27 |
密封垫片 |
Gasket |
| 28 |
内六角螺钉 |
Hexagon Screw |
| 29 |
放空阀 |
Release Valve |
| 30 |
排污塞 |
Drain Piug |
|
|
 |
| 主要材质 Main Materials |
| 零件名称Part Name |
A |
B |
C |
D |
E |
F |
| 阀体Body |
WCB |
WCB |
WCB |
CF8 |
CF8M |
LCC/LCB |
| 阀座支承圈 Seat Retainer |
A105+ENP |
F304 |
F316 |
F304 |
F316 |
LF2+ENP |
| 球体Ball |
A105+ENP |
F304 |
F316 |
F304 |
F316 |
LF2+ENP |
| 阀杆 Srem |
F6a |
F304 |
F316 |
F304 |
F316 |
F6a |
| 螺栓 Stud |
B7 |
F7M |
F7M |
B8 |
B8M |
L7M |
| 螺母 Nut |
2H |
2HM |
2HM |
8 |
8M |
7M |
| 弹簧 Spring |
17-7PH/INCONEL |
| 阀座 Seat |
PTFE/PPL/NYLON/DEVLON |
| O型圈 O Ring |
VITON |
| 填料Packing |
GRAHITE/PTFE |
| 防火密封垫片Anti-fire Gasket |
304+GRAPHITE |
|
|
 |

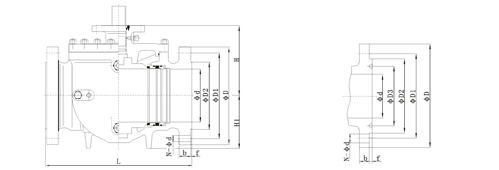

Pressure
rating |
Nominal
Diameter |
D |
Flanged
|
Buttw
elding |
Flanged |
H |
H1 |
Weight(kg) |
| class |
NPS |
DN |
L(RH) |
L(RTJ) |
L(BW) |
L(BW) |
D |
D1 |
D2 |
D3 |
F |
B |
N-фd |
| 600 |
2" |
50 |
50 |
292 |
295 |
292 |
292 |
165 |
127 |
92 |
|
7 |
26 |
8-ф19 |
142 |
110 |
△ |
| 3" |
80 |
75 |
356 |
359 |
356 |
356 |
210 |
168.5 |
127 |
|
7 |
32 |
8-ф22 |
188 |
165 |
△ |
| 4" |
100 |
100 |
432 |
435 |
432 |
432 |
275 |
216 |
157 |
|
7 |
28.5 |
8-ф25 |
205 |
193 |
△ |
| 6" |
150 |
150 |
559 |
562 |
559 |
559 |
355 |
292 |
216 |
|
7 |
48 |
12-ф29 |
255 |
242 |
△ |
| 8" |
200 |
201 |
660 |
664 |
660 |
660 |
420 |
349 |
270 |
|
7 |
56 |
16-ф32 |
282 |
268 |
△ |
| 10" |
250 |
252 |
787 |
791 |
787 |
787 |
510 |
432 |
324 |
|
7 |
64 |
20-ф35 |
369 |
339 |
△ |
| 12" |
300 |
303 |
838 |
841 |
838 |
838 |
560 |
498 |
381 |
|
7 |
67 |
20-ф35 |
402 |
330 |
△ |
| 14" |
350 |
334 |
889 |
892 |
889 |
889 |
605 |
527 |
413 |
|
7 |
70 |
20-ф39 |
410 |
360 |
△ |
| 16" |
400 |
385 |
991 |
994 |
991 |
991 |
685 |
603 |
470 |
|
7 |
77 |
20-ф51 |
467 |
430 |
△ |
| 18" |
450 |
436 |
1092 |
1095 |
1092 |
1092 |
745 |
654 |
533 |
|
7 |
83 |
20-ф44 |
560 |
490 |
△ |
| 20" |
500 |
487 |
1194 |
1200 |
1194 |
1194 |
815 |
724 |
584 |
|
7 |
89 |
24-ф32 |
633 |
536 |
△ |
| 24" |
600 |
589 |
1397 |
1407 |
1397 |
1397 |
940 |
838 |
692 |
|
7 |
102 |
24-ф35 |
692 |
112 |
△ |
| 900 |
2" |
50 |
50 |
368 |
371 |
368 |
368 |
215 |
165 |
124 |
95.25 |
7.92 |
38.5 |
8-ф25 |
160 |
168 |
△ |
| 3" |
80 |
75 |
381 |
384 |
381 |
381 |
240 |
190.5 |
156 |
123.25 |
7.92 |
38.5 |
8-ф25 |
213 |
197.5 |
△ |
| 4" |
100 |
100 |
457 |
460 |
457 |
457 |
290 |
235 |
181 |
149.23 |
7.92 |
45 |
8-ф32 |
232 |
258 |
△ |
| 6" |
150 |
150 |
610 |
613 |
610 |
610 |
380 |
317.5 |
241 |
211.12 |
7.92 |
56 |
12-ф32 |
289 |
294 |
△ |
| 8" |
200 |
201 |
737 |
740 |
737 |
737 |
470 |
393.5 |
308 |
269.88 |
7.92 |
64 |
12-ф39 |
319 |
372 |
△ |
| 10" |
250 |
252 |
838 |
841 |
838 |
838 |
545 |
470 |
362 |
323.85 |
7.92 |
70 |
16-ф39 |
407 |
329 |
△ |
| 12" |
300 |
303 |
965 |
968 |
965 |
965 |
610 |
533.5 |
419 |
381 |
7.92 |
79.5 |
20-ф39 |
443 |
329 |
△ |
| 14" |
350 |
322 |
1029 |
1038 |
1029 |
1029 |
610 |
559 |
467 |
419.1 |
11.13 |
86 |
20-ф42 |
467 |
345 |
△ |
16"
|
400
|
373
|
1130
|
1140
|
1130
|
1130
|
705
|
616
|
524
|
469.9 |
11.13
|
89
|
20-ф45
|
527
|
388
|
△ |
| 18" |
450 |
423 |
1219 |
1232 |
1219 |
1219 |
785 |
686 |
594 |
533.4 |
12.7 |
102 |
24-ф51 |
632 |
463 |
△ |
| 20" |
500 |
470 |
1321 |
1334 |
1321 |
1321 |
855 |
749.5 |
648 |
584.22 |
12.7 |
108 |
24-ф54 |
715 |
527 |
△ |
| 24" |
600 |
570 |
1549 |
1568 |
1549 |
1549 |
1040 |
901.5 |
772 |
692.15 |
15.88 |
140 |
24-ф67 |
782 |
573 |
△ | |
