| 1、用途Use |
适用于区域供热（热电联产）、输热、输油及除氧水等工业管钱。
Suitable for the pipeline to transfer cogeneration,cogeneration,heating,oil,deoxygenized water and etc. |
| 2、结构特性Structure Features |
阀门是由全焊接的阀体和增强四氟密封垫组成，阀门可在有杂质化学物质的情况下进行频繁操作，运行可靠。采用浮动球结构，斜面弹性垫圈保证密封圈紧压在球体之上，即使在压力不稳定的情况下，阀门也可以保证良好的密封性。阀杆可加长，易用于保温。
The valve is composed by a full welding body together with the RPTFE sealing which ensures the valve can work well in case of there are imoutries or chemical substance.Floating ball structure and the flexible seat will ensure the ball and the sealing connects each other tightly.Evon when the pressure is not stable,the valve can also have a good sealing. The stem can be extended which is good for keeping the tempeture stable. |
| 3、技术规范Technical Specifications |
4．主要零件与材质Main Parts and Materials |
| 设计和制造Design and Manufacture |
AP16D. ASME B16.34. API 608. MSS-SP-72 |
| 结构长度Face-to-Face |
按厂标Manufacture’s specification |
| 连接端*Connection End |
法兰连接Flanged
|
ASME B16.5 |
| |
对焊连接Butt-Welding |
ASME B16.25 |
| 试验和检验Test and Inspection |
AP1598. API 6D |
| 防火试验Fire Test |
API 607. API 6FA |
阀门连接端对焊端尺寸可按用户要求设计制造。
the dimension of welded end connection can be designed
and manufactured according to the buyers’s request. |
|
|
| 零件名称Part Name |
材料Materials |
| 手柄Handle |
镀锌钢 |
| 垫圈Retaining ring |
不锈钢 |
| O型圈O-ring |
Viton |
| 阀杆Stem |
不锈钢 |
| 密封圈Seal |
RPTFE(碳纤) |
| 球Ball |
不锈钢 |
| 球座Ball seat |
不锈钢 |
| 备用垫圈Back-up ring |
不锈钢 |
| 弹性垫圈Spring washer |
不锈钢 |
| 球室Valve casing |
CS |
|
|
 |

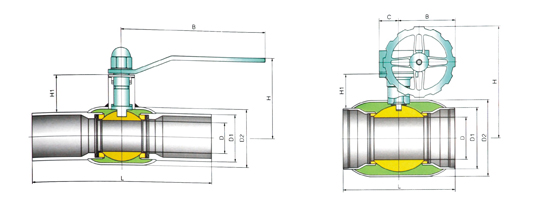

| 主要外形尺寸及重量Main Size of Oustide＆Weight PN25/PN40 |
| 缩径焊接，焊接Reduced Bore Welded/Welded 单位Unit: mm |
| DN |
PN |
L |
D |
D1 |
D2 |
H |
B |
c |
H1 |
Weight(KG) |
扭矩(N．M) |
| 10 |
40 |
230 |
10 |
172 |
33 7 |
98 |
145 |
|
22 |
0.5 |
1-2 |
| 15 |
40 |
230 |
10 |
21.3 |
33.7 |
98 |
145 |
|
22 |
0.5 |
1-2 |
| 20 |
40 |
230 |
15 |
26.9 |
42.4 |
103 |
145 |
|
23 |
0.7 |
3-4 |
| 25 |
40 |
230 |
20 |
337 |
48.3 |
118 |
145 |
|
34 |
1.0 |
5-7 |
| 32 |
40 |
260 |
25 |
42.4 |
60 3 |
121 |
145 |
|
34 |
1.4 |
8-11 |
| 40 |
40 |
260 |
32 |
48 3 |
76 1 |
120 |
190 |
|
43 |
1.8 |
12-18 |
| 50 |
40 |
300 |
40 |
60 3 |
88 9 |
127 |
190 |
|
44 |
2.6 |
25-32 |
| 65 |
25 |
300 |
50 |
76.1 |
114.3 |
170 |
280 |
|
71 |
4.4 |
38-45 |
| 80 |
25 |
300 |
65 |
88.9 |
139.7 |
185 |
280 |
|
77 |
5.6 |
55-65 |
| 100 |
25 |
325 |
80 |
114.3 |
168.3 |
210 |
280 |
|
102 |
8.4 |
110-120 |
| 125 |
25 |
325 |
100 |
139.7 |
177.8 |
253 |
400 |
|
102 |
134 |
200-250 |
| 150 |
25 |
350 |
125 |
168.3 |
219.1 |
273 |
600 |
|
107 |
18.0 |
300-340 |
| 200 |
25 |
400 |
150 |
219.1 |
273 |
300 |
900 |
|
123 |
36.3 |
450-480 |
| 250 |
25 |
530 |
200 |
273 |
355.6 |
345 |
1200 |
|
122 |
72.0 |
750-800 |
| 300 |
25 |
550 |
250 |
323.9 |
457 |
572 |
280 |
193 |
155 |
193 |
900-950 |
| 350 |
25 |
650 |
300 |
355.6 |
508 |
697 |
325 |
150 |
187 |
385 |
1200-1300 |
| 400 |
25 |
760 |
350 |
406.4 |
610 |
764 |
466 |
175 |
221 |
567 |
1 900-2000 |
| 500 |
25 |
914 |
400 |
508 |
680 |
810 |
466 |
175 |
221 |
746 |
|
| 600 |
25 |
1067 |
500 |
610 |
830 |
973 |
466 |
175 |
259 |
1568 |
|
|
|
| |
