| 性能规范Technical Data |
| 公称压力Nominal Pressure(MPa) |
公称通径Nominal Diameter(mm) |
适用介质Applicable Medium |
| 4.0 |
15 - 32 |
淡水、滑油、燃油和f≤4000C蒸汽 |
| 10.0 |
6-32 |
Fresh water. Lubricanting oil, Fuel oil,f≤4000C steam |
|
|
| 主要零部件材质Materials of Main Parts |
| 零件名称Parts Name |
材料Material |
| |
名称Name |
牌号Marks |
| |
不锈钢Stainless Steel |
DNlO - 6: 2Cr13 |
| 阀体Body |
碳素钢Carbon Stee¨ |
DN25 - 32: 0235-A |
| |
铸铝青铜Cast Aluminum Bronze |
DN6 - 32: ZCuA19Mn2 |
| 阀盖Cover |
碳索钢、铸铝青铜Carbon Steel/Cast Aluminum Bronze |
C)235-A. CuA19Mn2 |
| 阀盘、阀杆Disc/Stem |
不锈钢、铝青铜Stainless Steel/Aluminum Bronze |
2Cr132. CuA19Mn2 |
|
|

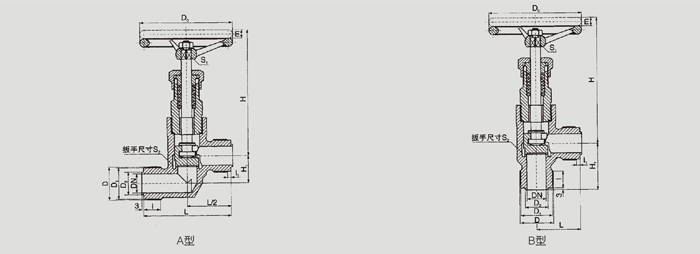

| DN6-10的基本尺寸Dimensions |
| 公称 |
公称 |
结构尺寸S |
ructure Dimension |
嫘纹接头 |
扳手尺寸 |
手轮 |
升程 |
参考重量 |
压力
PN |
通径
DN |
L
|
H≈ |
Hi
|
Thread Jo
|
nf
|
Wrench Size S2
|
Hand wheel
|
Lift Range |
Weight(kg) |
| (MPa) |
(mm) |
A型 |
B型 |
|
A型 |
B型 |
D |
Di |
D2 |
l |
|1 |
A型l B型 |
Do |
S1 |
m |
A型 |
B型 |
10.0 |
6
|
74
|
37
|
90
|
12
|
32
|
M22×1.5
|
19.8
|
10
|
14
|
3
|
24
|
65
|
7
|
5
|
0.49
|
0.45
|
| |
10 |
94 |
47 |
109 |
16 |
38 |
M27×1.5 |
24.8 |
14 |
16 |
3 |
30 |
80 |
8 |
7 |
0.89 |
0.86 |
|
|
| DN15 - 32的基本尺寸Dimensions |
| 公称 |
公称 |
结构尺寸S |
ructure Dimension |
螺纹接头 |
扳手尺寸 |
手轮 |
升程 |
参考重量 |
压力
PN
|
通径
DN
|
L
|
H≈ |
Hi
|
Thread Jo
|
nf
|
Wrench Size S2
|
Hand wheel
|
Lift Range |
Weight(kg) |
| (MPa) |
(mm) |
A型 |
B型 |
|
A型 |
B型 |
D |
Di |
D2 |
l |
|1 |
A型 |
B型 |
Do |
Si |
m |
A型 |
B型 |
| |
15 |
110 |
55 |
143 |
25 |
52 |
M36×2 |
33 |
22 |
22 |
5 |
32 |
41 |
80 |
8 |
10 |
1.60 |
1.54 |
| 4.0 |
20
|
116
|
58
|
153
|
32
|
55
|
M39×2
|
36
|
25
|
23
|
5
|
36
|
46
|
100
|
9
|
12
|
2.04
|
1.91 |
| |
25 |
130 |
65 |
167 |
38 |
64 |
M48×2 |
45 |
32 |
26 |
6 |
46 |
50 |
120 |
11 |
14 |
2.88 |
2.37 |
| |
32 |
140 |
70 |
197 |
46 |
72 |
M56X2 |
53 |
38 |
28 |
6 |
46 |
60 |
140 |
12 |
16 |
4.56 |
4.21 |
| |
15 |
120 |
60 |
164 |
27 |
52 |
M36×2 |
33 |
22 |
22 |
5 |
32 |
41 |
120 |
11 |
10 |
2.10 |
2.06 |
| 10.0 |
20 |
134 |
67 |
194
|
32
|
55
|
M39×2
|
36
|
25
|
23
|
5
|
36
|
46
|
140
|
12
|
12
|
2.95
|
3.19 |
| |
25 |
134 |
67 |
204 |
38 |
64 |
M48×2 |
45 |
32 |
26 |
6 |
46 |
55 |
140 |
12 |
14 |
3.72 |
3.60 |
| |
32 |
146 |
73 |
220 |
46 |
75 |
M56×≯ |
53 |
38 |
28 |
6 |
55 |
65 |
160 |
14 |
16 |
5.12 |
4.35 | |
