| 性能规范Technical Data |
| 公称压力Nominal Pressure(MPa) |
公称通径Nominal Diameter(mm) |
适用介质Applicable Medium |
0.1
|
32
|
海水、淡水、滑油、燃油 |
1.6
|
20\25
|
Sea water. Fresh water. Lu bricanting oil, Fuel oil |
| 2.5 |
6\10\15 |
|
|
|
| 主要零部件材质Materials of Main Parts |
零件名称Parts Name |
材料Material
|
| |
名称Name 牌号Marks |
| 阀体、塞芯Body/Core |
铸锡青铜Cast Tin Bronze ZCuSn102n2 |
|
|

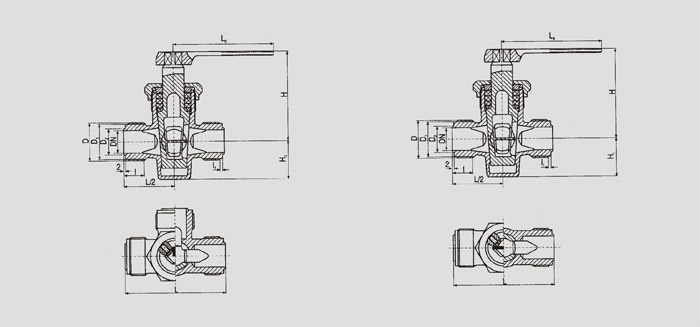

| 基本尺寸Dimensions |
| 公称通径 |
结构尺寸Structure D |
mension |
螺纹接头Thread Joint |
手柄Handle |
参考重量Weight(kg) |
DN(mm)
|
L |
Hi |
H |
D |
Di |
D2 |
l |
L0
|
A型
|
T型
|
L型
|
| 6 |
70 |
20 |
60 |
M22×1 5 |
|
|
12 |
100 |
0.42 |
0.48 |
0.49 |
| 10 |
78 |
27 |
72 |
M27×1 5 |
|
|
15 |
110 |
0.69 |
0.71 |
0.72 |
| 15 |
92 |
37 |
92 |
M36×2 |
|
|
16 |
115 |
1.07 |
1.24 |
1.26 |
| 20 |
98 |
40 |
99 |
M36×2 |
33 |
24 |
20 |
125 |
1.52 |
1.70 |
1.72 |
25
|
106
|
42
|
108
|
M42×2 |
39
|
29
|
20
|
140
|
1.90
|
2.22
|
2.24
|
32
|
126
|
49
|
120
|
M48X2 |
45
|
36
|
20
|
160
|
3.47
|
3.79
|
3.89
| |
