| 性能规范Technical Data |
| 公称压力Nominal Pressure(MPa) |
公称通径Nominal Diameter(mm) |
适用介质Applicable Medium |
1.0
|
40 - 150
|
海水、淡水Sea water．Fresh water |
| 0.6 |
200 - 250 |
|
|
|
| 主要零部件材质Materials of Main Parts |
| 零件名称Parts Name |
材料Material |
| |
名称Name |
牌号Marks |
| 阀体、阀盖Body/Cover |
灰铸铁Cast iron |
HT200 |
| 阀盘Body |
铸锡青铜Cast Tin Bronze |
ZCuSn5Pb52n5 |
| 阀座、阀杆Seat/Stem |
铝青铜Aluminum Bronze |
CuA19Mn2 | |

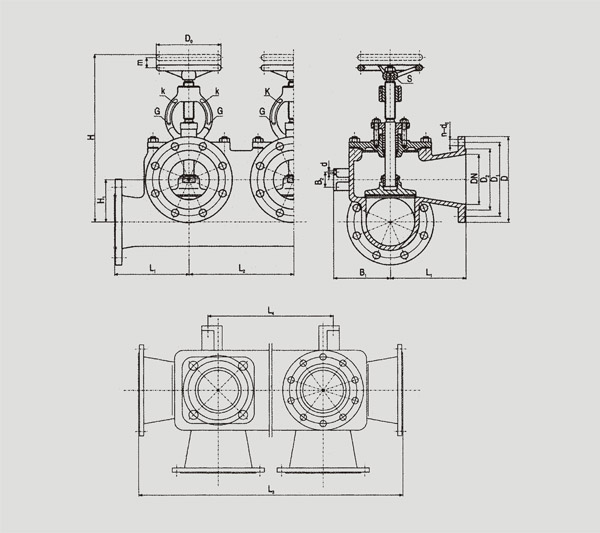

| R型、S型基本尺寸Dimensions |
公称
|
公称
|
结构尺寸Structure Dimension
|
壁厚 |
法兰
Connection D
|
连接尺寸
mension Of Flange
|
手轮
Hand |
升程 |
参考重量 |
| |
|
|
|
|
|
|
|
|
|
|
Thickness |
|
|
|
|
|
螺栓 |
wheel |
Lift |
Weight(kg) |
压力
PN
(MPa)
|
通径
DN
(mm)
|
L1
|
L2
|
L3
R型 |
S型 |
L4
R型 |
S型 |
H≈
|
Hi
|
B1
|
B2
|
d
|
8
|
D
|
Di
|
D2
|
b
|
n-do
|
Bolt
Th |
Do |
S |
m
Range
|
R型
|
S型 |
| |
40 |
110 |
160 |
380 |
540 |
210 |
370 |
283 |
48 |
95 |
50 |
13 |
8 |
125 |
93 |
74 |
16 |
6-15 |
M14 |
120 |
11 |
12 |
17.1 |
24.8 |
| |
50 |
120 |
180 |
420 |
600 |
230 |
410 |
315 |
58 |
100 |
50 |
15 |
8 |
135 |
103 |
84 |
16 |
6-15 |
M14 |
140 |
12 |
15 |
24.05 |
36.0 |
| |
65 |
130 |
180 |
440 |
620 |
230 |
410 |
345 |
73 |
120 |
50 |
15 |
9 |
155 |
123 |
104 |
15 |
6-15 |
M14 |
140 |
12 |
19 |
33.5 |
50.0 |
| 1.0 |
80 |
140 |
200 |
480 |
680 |
260 |
460 |
390 |
89 |
130 |
60 |
17 |
9 |
170 |
138 |
118 |
15 |
8-15 |
M14 |
160 |
14 |
23 |
43.5 |
64.7 |
| |
100 |
170 |
230 |
570 |
800 |
290 |
520 |
430 |
110 |
150 |
60 |
17 |
10 |
190 |
158 |
138 |
15 |
8-15 |
M14 |
180 |
14 |
28 |
69.5 |
102.0 |
| |
125 |
200 |
250 |
650 |
900 |
310 |
560 |
490 |
135 |
160 |
60 |
17 |
10 |
215 |
183 |
164 |
15 |
10-15 |
M14 |
200 |
17 |
35 |
85.4 |
125.0 |
| |
150 |
230 |
280 |
740 |
1020 |
340 |
620 |
560 |
152 |
175 |
60 |
17 |
11 |
240 |
208 |
190 |
16 |
12-15 |
M14 |
200 |
17 |
42 |
125.0 |
180.5 |
| 0.6 |
200
|
280
|
380
|
940
|
1320
|
446 |
826
|
720
|
208
|
225
|
80
|
21
|
13
|
295 |
264
|
247 |
16
|
12-15
|
M14
|
360
|
27
|
90
|
202.0
|
382.0 |
| |
250 |
400 |
460 |
1260 |
1720 |
544 |
1004 |
870 |
246 |
270 |
80 |
21 |
14 |
365 |
327 |
306 |
18 |
14-17 |
M16 |
360 |
27 |
120 |
294.0 |
553.0 |
|
|
| RS犁、SS型基本尺寸Dimensions |
公称
|
公称
|
结构尺寸Structure Dimension
|
壁厚 |
法兰
Connection D
|
连接尺寸
mension OT卜
|
ange
|
手轮
Hand |
升程 |
参考重量
|
| |
|
|
|
|
|
|
|
|
|
|
Thickness |
|
|
|
|
|
螺栓 |
wheel |
Lift |
Weight(kg) |
压力
PN
(MPa)
|
通径
DN
(mm)
|
L1
|
L2
|
L3
RS型 |
SS型 |
L4
RS型 |
SS型 |
H≈
|
Hi
|
B1
|
B2
|
d
|
8
|
D
|
Di
|
D2
|
b
|
n-do
|
Bolt
Th |
Do |
S |
m
Range
|
R型 |
S犁 |
| |
40 |
115 |
180 |
410 |
590 |
230 |
410 |
283 |
48 |
13 |
8 |
13 |
8 |
150 |
1 10 |
88 |
18 |
4-18 |
M16 |
120 |
11 |
12 |
20.5 |
30 0 |
| |
50 |
125 |
195 |
445 |
640 |
245 |
440 |
315 |
58 |
15 |
8 |
15 |
8 |
165 |
125 |
102 |
20 |
4-18 |
M16 |
140 |
12 |
14 |
30.0 |
44.3 |
| |
65 |
145 |
215 |
505 |
720 |
265 |
480 |
345 |
73 |
15 |
9 |
15 |
9 |
185 |
145 |
122 |
20 |
4-18 |
M16 |
140 |
12 |
20 |
40.0 |
60.0 |
| 1.0 |
80 |
155 |
230 |
540 |
770 |
290 |
520 |
390 |
89 |
17 |
9 |
17 |
9 |
200 |
160 |
133 |
22 |
8-18 |
M16 |
160 |
14 |
26 |
52.6 |
79.0 |
| |
100 |
175 |
270 |
620 |
890 |
330 |
600 |
430 |
110 |
17 |
10 |
17 |
10 |
220 |
180 |
158 |
24 |
8-18 |
M16 |
180 |
14 |
36 |
8105 |
120.0 |
| |
125 |
200 |
290 |
690 |
980 |
350 |
640 |
490 |
135 |
17 |
10 |
17 |
10 |
250 |
210 |
184 |
26 |
8-18 |
M16 |
200 |
17 |
45 |
102.6 |
150.8 |
| |
150 |
225 |
325 |
775 |
1100 |
385 |
710 |
560 |
152 |
17 |
11 |
17 |
11 |
285 |
240 |
212 |
26 |
8-22 |
M20 |
200 |
17 |
58 |
146.8 |
212.8 |
0.6 |
200
|
275 |
380 |
930
|
1310
|
470
|
850
|
720
|
208
|
21
|
13 |
21
|
13
|
320
|
280
|
258
|
22
|
8-22
|
M16
|
360
|
27
|
68
|
223.2
|
413.9 |
| |
250 |
325 |
435 |
1080 |
1520 |
535 |
970 |
870 |
246 |
21 |
14 |
21 |
14 |
375 |
335 |
312 |
24 |
12-18 |
M16 |
450 |
32 |
80 |
308.8 |
575.2 | |
